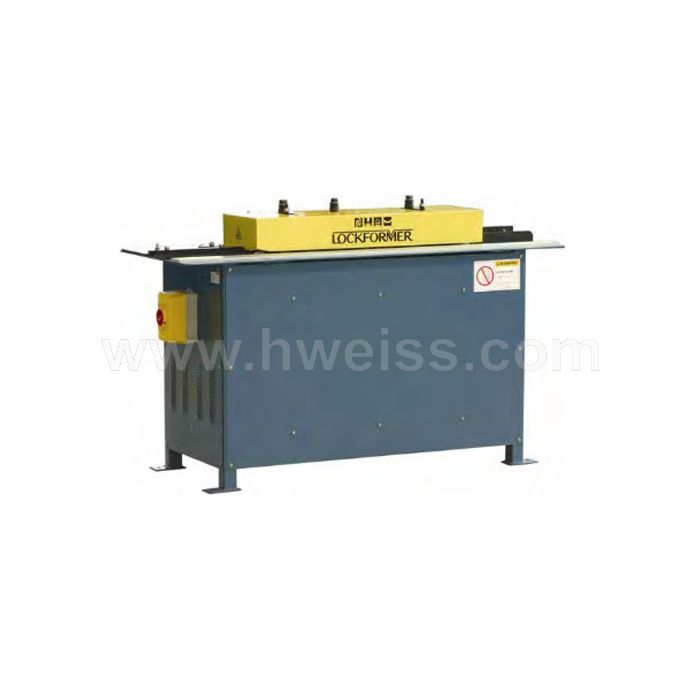

Lockformer 20 Gauge Button Punch Snaplock

Manufacturer: Lockformer

Condition: NEW

Location: F.O.B Factory

Description:

The Button Punch Snap Lock Machines form a two piece seam that greatly simplifies ductwork assembly. The male seam is a button, the female seam is a lock and the two snap together for a flush corner. These machines can form 20 to 26 gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm and are available in seven and nine forming station machines. Not only do these locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too.

Standard with Lockformer quality construction, these machines have industrial motors; high precision needle-type bearings; heavy ¾" chassis plate; case-hardened and ground roll shafts; and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish. Alternate fittings are easily accessible from a main transmission bearing lubrication panel.

Description

The Button Punch Snap Lock Machines form a two piece seam that greatly simplifies ductwork assembly. The male seam is a button, the female seam is a lock and the two snap together for a flush corner. These machines can form 20 to 26 gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm and are available in seven and nine forming station machines. Not only do these locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too.

Standard with Lockformer quality construction, these machines have industrial motors; high precision needle-type bearings; heavy ¾" chassis plate; case-hardened and ground roll shafts; and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish. Alternate fittings are easily accessible from a main transmission bearing lubrication panel.

specifications

  • Capacity: 20–26 gauge
  • Depth Of Pocket/Size: Uses approximately 1 3/4" material
  • Others: Special speeds available upon request
  • Speed: 60 - 65 feet per minute
  • Motor/Voltage: 3 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 3,600 RPM. Other motors available upon request.
  • Dimensions: Length - 58.5", Width - 24", Height - 41", Passline - 34"
  • Weight: 550 lbs
