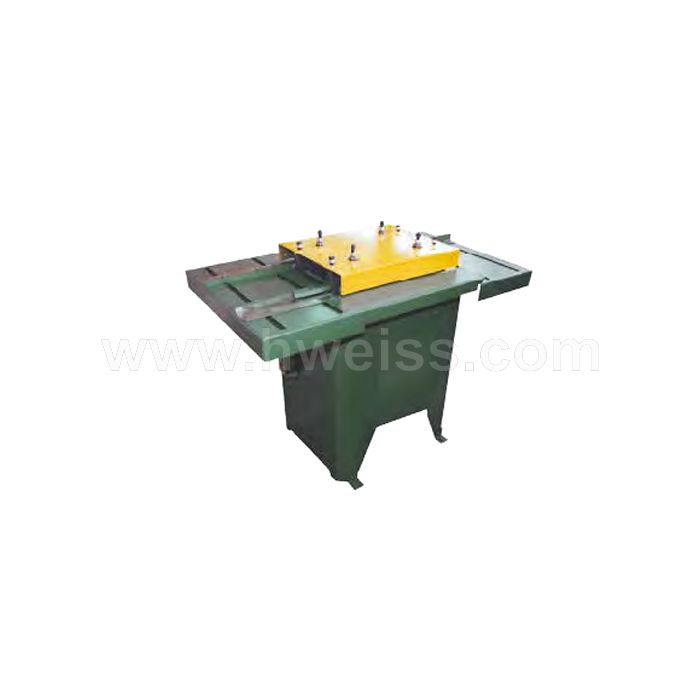

Engel 800-P-18 – 18 Gauge Pittsburgh Machine

Manufacturer: Engel

Condition: NEW

Location: F.O.B Factory

Description:

The Pittsburgh Lock revolutionized the HVAC Industry in the late 1930’s and is still used today for its strength and ease in assembling ductwork.

The HB-800 Series Pittsburgh rollforming machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles. Versatile. Roll tooling can be changed out.

Description

The Pittsburgh Lock revolutionized the HVAC Industry in the late 1930’s and is still used today for its strength and ease in assembling ductwork.

The HB-800 Series Pittsburgh rollforming machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles. Versatile. Roll tooling can be changed out.

specifications

  • Capacity: 18–22 gauge
  • Depth Of Pocket/Size: 3/8" Uses approximately 1 1/8" of material
  • Other: Width of hammer-over edge adjustable up to 3/8". Extended shafts for mounting auxiliary rolls.
  • Speed: 40 - 45 feet per minute
  • Motor/Voltage: 230/460 volts, 60 cycle, 3 phase, A. C. 1,800 RPM. Other motors available upon request
  • Dimensions: Length - 58.5", Width - 24", Height - 41", Passline - 34"
  • Weight: 750 lbs
