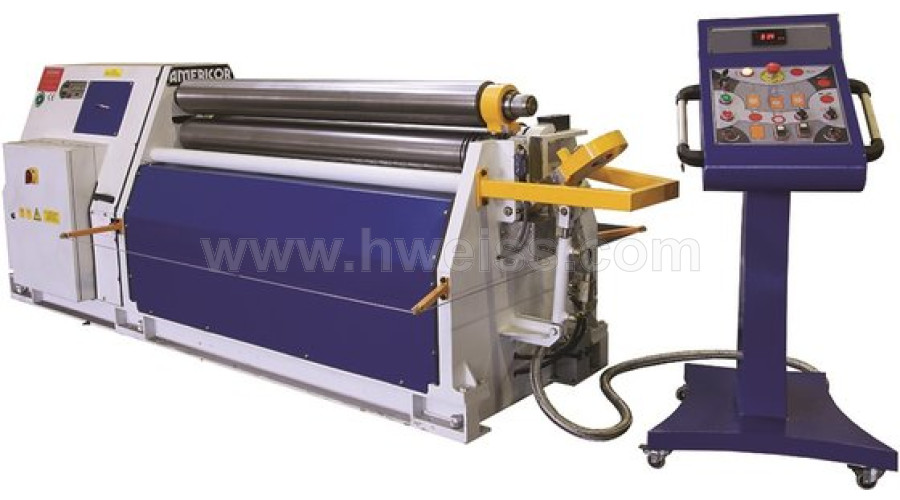

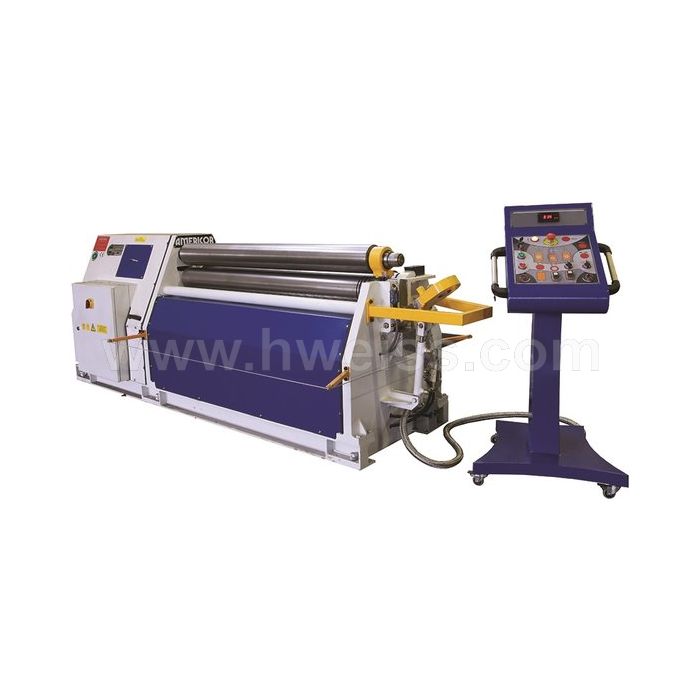

Americor 130/5 Initial Pinch Power Plate Roll

Manufacturer: Americor

Condition: NEW

Location: F.O.B Factory

Description:

This NEW generation of sheet metal and plate bending rolls covers the majority of applications within top roll diameters of 3.15" to 9.84" and standard capacities from 3' to 10' in length and 16 ga. to 9/16" thickness, and special 2' x 1/4" & 2' x 5/16" 4-Roll Double-Pinch Models.

Description

This NEW generation of sheet metal and plate bending rolls covers the majority of applications within top roll diameters of 3.15" to 9.84" and standard capacities from 3' to 10' in length and 16 ga. to 9/16" thickness, and special 2' x 1/4" & 2' x 5/16" 4-Roll Double-Pinch Models.

specifications

  • Capacity: 5' x 10 ga.
  • Top Roll Dia. 5.12"
  • Drive/Hyd. Motor HP: 2 HP
  • Weight: 4,070 lbs

features

  • Hydraulic roll adjustment for bending and prebending operation
  • Hydraulic pinch/clamping roll
  • Hydraulic drop-end
  • Digital readout for bending rolls positions
  • Cone bending attachment
  • Induction-hardened rolls
  • Roller bearings on all roll shafts
  • Emergency stop cable at front and rear of machine
  • Easy tilt of bending rolls for cone bending
  • Extra large openings between top and bottom rolls
  • Hydraulic oil and machine manual
  • Rolling control console (to allow for optimum operator convenience)
  • Hardened gears
  • lineal-guided roll adjustment for the bending rolls
  • An enhanced drive system (to allow rolling thickness within the machines opening between the top and clamping rolls) with NO BELTS, CHAINS OR EXTRA GEAR-DRIVING SYSTEMS
  • Rolls are SAE 1050 high strength steel heat treated and induction hardened to 56-60 RC
  • High quality international electric and hydraulic components
  • More rigid frame and drop-end arrangement
  • Enhanced cone bending device
  • Corrosion and abrasive resistant paint finish
  • European design & manufacture and built & certified to CE standards
