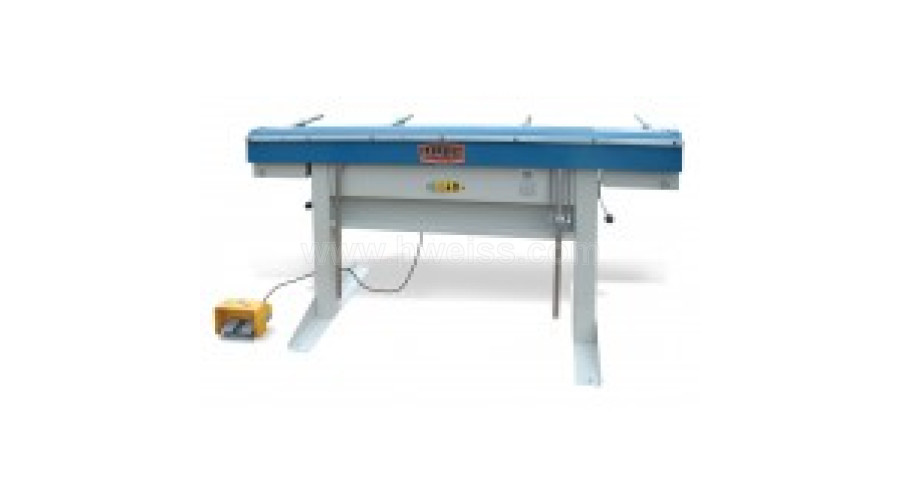

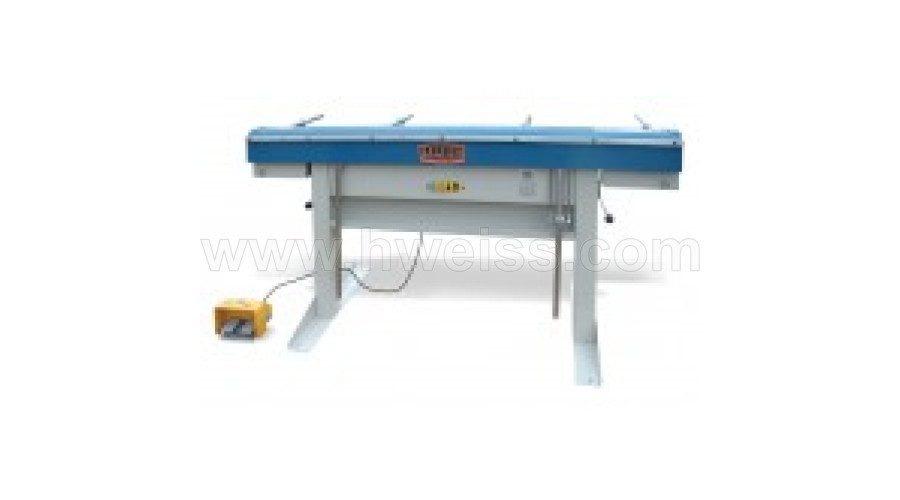

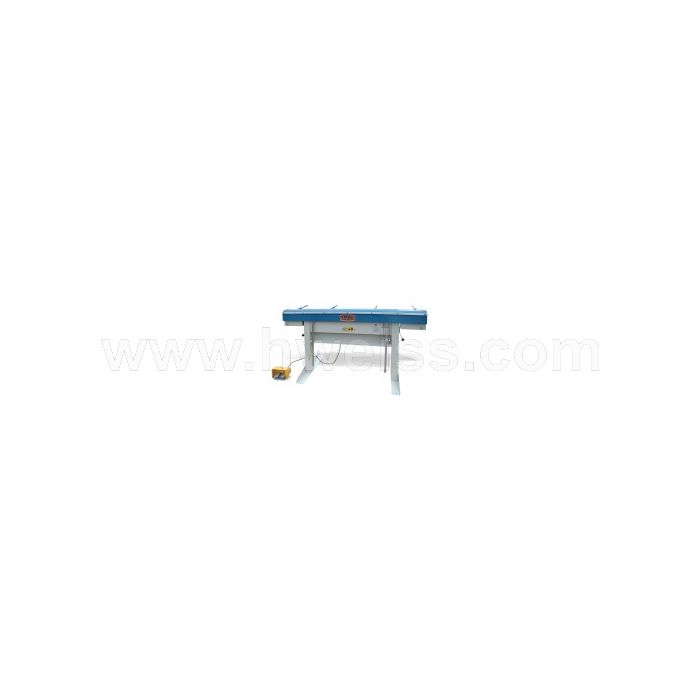

Baileigh Industrial BB-7216M Magnetic Brake

Manufacturer: Baileigh Industrial

Condition: NEW

Location: F.O.B Factory

Description:

This magnetic sheet metal brake enables you to make enclosed shapes that would be impossible on a traditional box brake.

Description

The Baileigh Industrial magnetic sheet metal brake can bend boxes or pans to almost any depth since it doesn’t rely on conventional finger depths.  The unique open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake. A 6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake. The scaled stroke angle control lets you deliver repeatable bends time after time.

You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications. The blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses and you can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625”.

specifications

Capacity, Mild Steel - 16 ga.

Capacity, Stainless Steel - 20 ga.

Clamping Force - 6 ton

Bend Angle - 0 - 180°

Max. Clamping Bar Lift Magnet - Unlimited

Power - 220V / 1-phase

Shipping Weight - 792 lbs.

Length - 72”

Shipping Dimensions - 87" x 44" x 15"

features

  • Runs on 220-volt single-phase power
  • 16 gauge mild steel maximum capacity
  • 6-foot (72”) length lets you to get creative with uses for this sheet metal brake
  • Offers all the features of our BB-4816M model—but with 2 feet of extra length
  • Maximum bend angle of 180°
  • Industrial magnetic power of 6 tons is consistent across the entire beam, producing crisp bends even in the middle
  • Unlimited box depth thanks to its open-ended design
  • Supplied back gauge helps you repeat bends and parts exactly
  • Baileigh covers this electromagnetic sheet metal brake with a 1-year parts warranty
