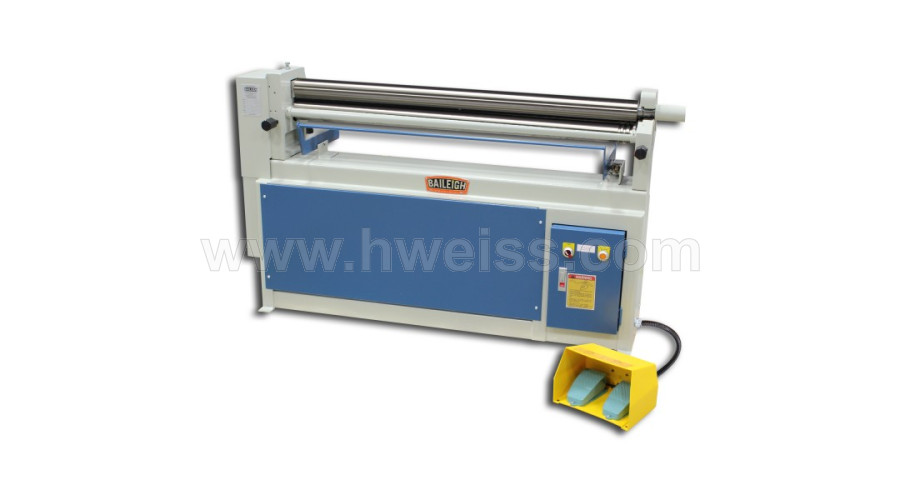

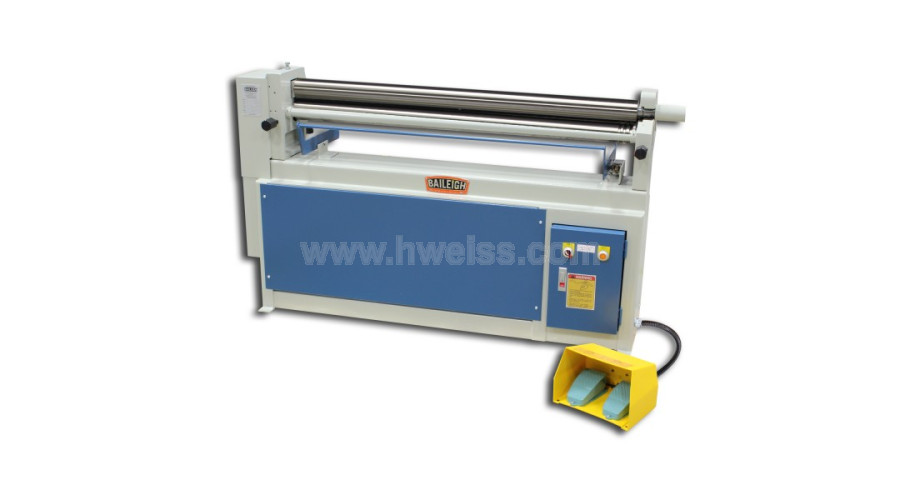

Baileigh Industrial SR-5016 Power Slip Roll (3” Dia.)

Manufacturer: Baileigh Industrial

Condition: NEW

Location: F.O.B Factory

Description:

The SR-5016E powered slip roll from Baileigh Industrial is the perfect roller for any HVAC shop or general fabrication shop when sheet metal forming 16 gauge or less mild steel is required. This slip roll has three forming rolls with a width of 51” and features two driven rolls for more power. Powered by 1hp 110V motor assures that this well thought out machine can operate anywhere.

Solid steel uprights on both the left and right sides of the SR-5016E slip roll make this one rigid machine, an important feature when bending at maximum capacity (16GA mild steel sheet metal). A heavy duty fully formed base is also included. Operation of the SR-5016E slip roller couldn’t be easier; it features a foot pedal for both left and right rolling applications and has three integrated emergency stops to help maintain a safe workplace. As with all Baileigh Industrial products the SR-5016E slip roll is built using only the highest grade components for years of long life. For more information contact a Baileigh Industrial representative.

Description

The SR-5016E powered slip roll from Baileigh Industrial is the perfect roller for any HVAC shop or general fabrication shop when sheet metal forming 16 gauge or less mild steel is required. This slip roll has three forming rolls with a width of 51” and features two driven rolls for more power. Powered by 1hp 110V motor assures that this well thought out machine can operate anywhere.

Solid steel uprights on both the left and right sides of the SR-5016E slip roll make this one rigid machine, an important feature when bending at maximum capacity (16GA mild steel sheet metal). A heavy duty fully formed base is also included. Operation of the SR-5016E slip roller couldn’t be easier; it features a foot pedal for both left and right rolling applications and has three integrated emergency stops to help maintain a safe workplace. As with all Baileigh Industrial products the SR-5016E slip roll is built using only the highest grade components for years of long life. For more information contact a Baileigh Industrial representative.

specifications

  • Forming Width: 51"
  • Roll Speed: 16 rpm
  • Upper Roll: 3" Dia
  • Minimum Forming: 4.5" Dia
  • Mild Steel Capacity: 16 ga
  • Wire Grooves: .315", .377", .5"
  • Capacity (Mild Steel): 16 ga .060"
  • Power: 110V / 1-phase
  • Shipping Dimensions: 70" x 24" x 44"
  • Shipping Weight: 750 lbs
