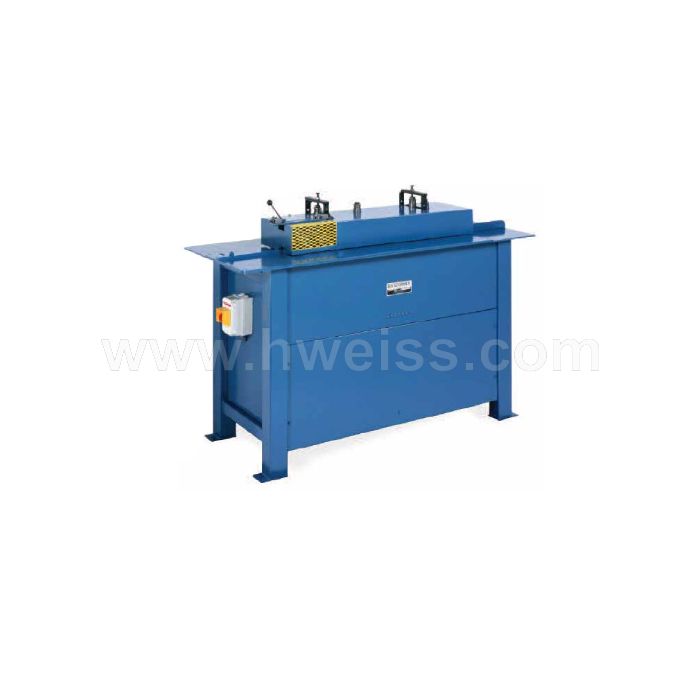

Lockformer Drive Turn Hemming

Manufacturer: Lockformer

Condition: NEW

Location: F.O.B Factory

Description:

The Lockformer Skip Dent Indexing Roll is the heart of the system. The indexer is the first roll and has four pins and two milled ridges. The control lever determines whether the blank is hemmed after the first or second notch. With the lever in position 1, as the blank engages the indexing roll, a pin drops into the first notch. A ridge adjacent to the pin pre-bends the material at its corner just enough to force the material into the hem forming rolls where the 180 degree hem is formed. The next pin, on the rotating index roll, drops into the second notch and since there is no ridge present, the corner of the blank is not turned down and misses the hemming rolls and this section remains unformed.

Description

The Lockformer Skip Dent Indexing Roll is the heart of the system. The indexer is the first roll and has four pins and two milled ridges. The control lever determines whether the blank is hemmed after the first or second notch. With the lever in position 1, as the blank engages the indexing roll, a pin drops into the first notch. A ridge adjacent to the pin pre-bends the material at its corner just enough to force the material into the hem forming rolls where the 180 degree hem is formed. The next pin, on the rotating index roll, drops into the second notch and since there is no ridge present, the corner of the blank is not turned down and misses the hemming rolls and this section remains unformed.

specifications

  • Capacity: 22-26 gauge
  • Depth Of Pocket/Size: Uses approximately 1/2" Hem material
  • Speed: 60 feet per minute
  • Motor/Voltage: 3 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 3,600 RPM
  • Dimensions: Length - 60", Width - 30", Height - 48", Passline - 34"
  • Weight: 800 lbs
