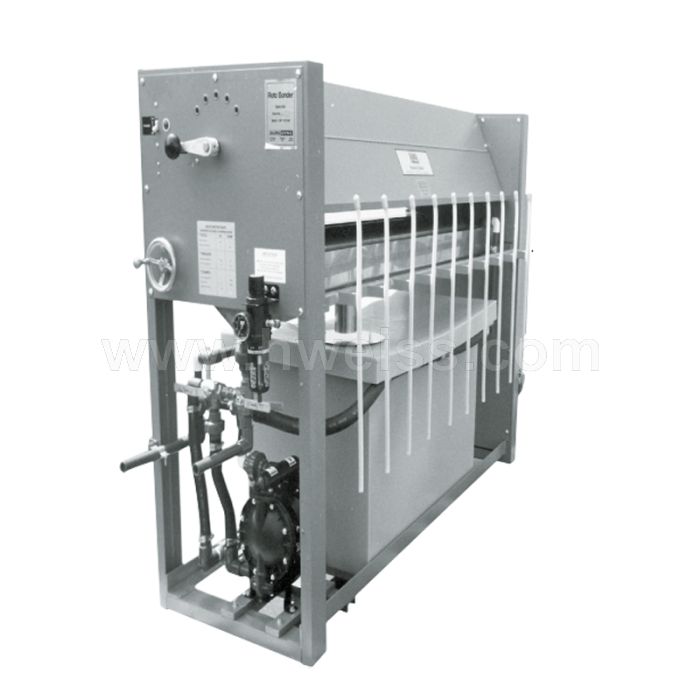

Duro Dyne Roto-Bonder Adhesive Applicator

Manufacturer: Duro Dyne

Condition: NEW

Location: F.O.B Factory

Description:

The Roto Bonder is a machine designed specifically for the purpose of roller coating one side of duct liner with adhesive prior to joining to the metal section of the duct. Insulation up to 60” wide can be evenly coated at a rate of 52’ per minute. Either Duro Dyne’s WSA or WIT adhesive can be used. Both are water base non-flammable adhesive and are available in 55 gallon drums or 5 gallon pails.

The Roto Bonder contains a trough through which the lower of two rollers rotates. The lower roller picks up adhesive, the thickness of which is controlled accurately by an adjustable metering bar. The Roto Bonder accepts insulation thickness of 1/2 to 2 inches.

Description

The Roto Bonder is a machine designed specifically for the purpose of roller coating one side of duct liner with adhesive prior to joining to the metal section of the duct. Insulation up to 60” wide can be evenly coated at a rate of 52’ per minute. Either Duro Dyne’s WSA or WIT adhesive can be used. Both are water base non-flammable adhesive and are available in 55 gallon drums or 5 gallon pails.

The Roto Bonder contains a trough through which the lower of two rollers rotates. The lower roller picks up adhesive, the thickness of which is controlled accurately by an adjustable metering bar. The Roto Bonder accepts insulation thickness of 1/2 to 2 inches.

specifications

  • GBAC Code No: 39171 left to right flow
  • GBAC Code No: 39250 right to left flow
  • Motor: 1/3 horsepower motor
  • Pump: Air operated diaphragm type
  • Insulation Thickness: Machine adjustable to coat insulation from 1/2” to 2” thick
  • Liner Width: From 12” to 60” wide
  • Liner Length: From 12”
  • Speed of Application: Approximately 52’ per minute
  • Adhesive : Duro Dyne WIT or WSA Water base only

features

  • A heavy duty low maintenance air operated pump
  • A metering bar accurately controls adhesive application
  • Easy access multi-port ball valves control adhesive flow
  • Safety guards are designed for maximum safety and practical shop use
  • The cleanup position leaves sufficient space between the upper roll and the adhesive roll to allow for easy cleanup without endangering the operator
  • A stainless steel trough provides dependable rustproof service
  • A 60 gallon covered storage tank is built into the Roto Bonder
