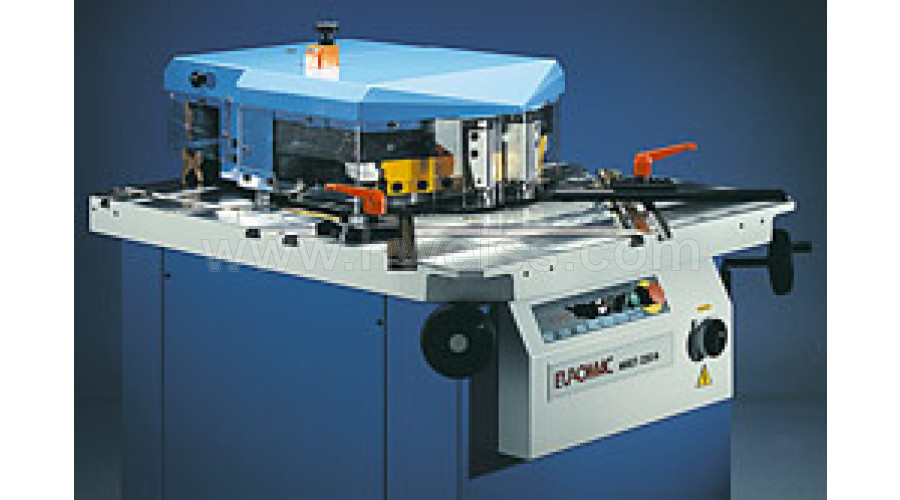

Euromac 220/6 - Fixed Angle Corner Notcher

Manufacturer: Euromac

Condition: NEW

Location: F.O.B Factory

Description:

EUROMAC fixed angle or variable angle notcher, - the Attachment broadens the applications extending your notcher to many features ordinarily o­nly found o­n an ironworker. Therefore you can affordably acquire two machines in o­ne and save floor space o­n top of everything.

Description

EUROMAC fixed angle or variable angle notcher, - the Attachment broadens the applications extending your notcher to many features ordinarily o­nly found o­n an ironworker. Therefore you can affordably acquire two machines in o­ne and save floor space o­n top of everything.

specifications

  • Blade Length mm: 7.87
  • Blade Clearance Adjustment: Automatic
  • Max. sheet thickness R= 42 kg/ mm²: 0.250"
  • Max. sheet thickness R= 60 kg/ mm²: 0.196"
  • Cutting angle: 90°
  • Strokes per min. : with max. cutting length and at 50 mm. cutting length: 1.968" 2.55"
  • Working table dimensions mm: 33.46x31.49
  • Working table height mm: 35.43
  • Overall machine dimensions mm. (L x W x H): 33.46 x 31.48 x 45.27
  • Weight kg: 1188
  • Motor kW Hp: 1188
  • Motor kW Hp: 4 - 5,5
  • Oil tank capacity Lt: 55

features

  • Rectangle slot punching with the rectangular cutting unit
  • Punch hole patterns with the punch tool station
  • Press brake adaptation for a maximum bend length of 415 mm in materials up to 5 mm thick
  • Table extensions allow you to precisely gauge even larger parts up to 1500 mm from the center tool line of the station
  • A heavy duty macrolon clear shield covers the station for your safety
  • The large throat depth of 270 mm allows you to punch hole patterns into up to 540 mm wide materials by rotating them
