Description

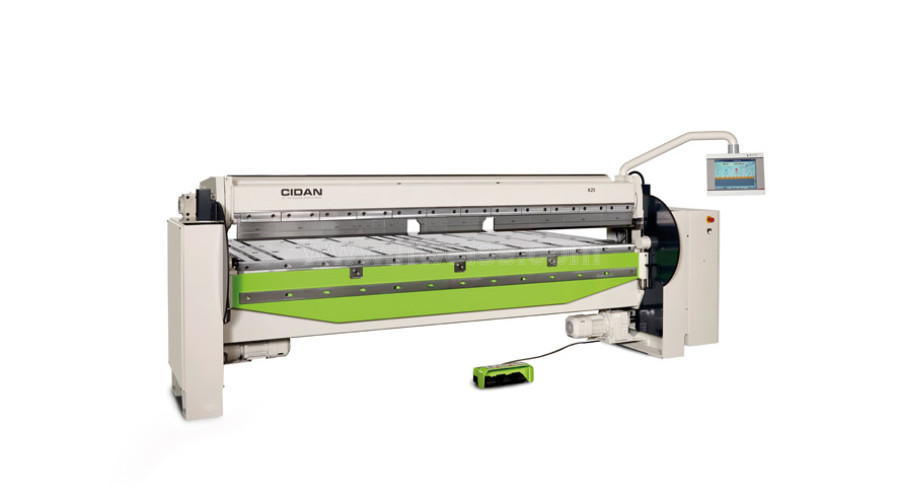

The Cidan K25-30 Folding Machine is a fast and easy to use machine made in a sturdy all-weld steel construction with cast iron side frames fro stability. The K25 is built for continuous running under the most demanding conditions. This machine covers a wide range of different usage areas in the manufacturing industry. Both the folding beam and the clamping beam have twin drives.
specifications
- Folding Length: 122" (3100)
- Folding Capacity Steel: 2.00 (14)
- Folding Capacity Stainless Steel: 1.20 (18)
- Folding Capacity Aluminum: 3.00 (0.118)
- Opening Height – Clamping Beam: 135 mm
- Motor – Clamping Beam: 1.5 kw
- Motor – Folding Beam: 1.5 kw
- Dimensions: 4190 mm x 1600 mm x 1700 mm
- Weight: 3,685
features
- Control System EasyLink with touch screen for input and storage of folding operations
- Clamping beam with straight rail 30°
- Lower beam rail
- Double sided folding beam rail 7/10mm with quick change tooling (bayonet style) – Not for multifold execution
- Folding beam rail 20mm with quick change tool (bayonet style) – Not for multifold execution
- Manual crowning of folding beam rail
- Control System ProLink with touch screen and graphic programming
- Off line program for ProLink
- Motorised back gauge SBG or LBG
- Ball transfers in back gauge table standard on SBG (option on LBG)
- Squaring arm
- Height adjustable back gauge (0-40mm) require multifold
- Combi clamping beam 30° straight rail and 103 mm high box tooling with radius 1mm
- Multifold tooling execution with divided lower beam (height 42mm) and divided folding beams rails (10mm & 20mm) requires combi
- Straight rail and box tooling with 0.75mm radius kit
- Folding beam rail 25mm or 30mm with quick change
- Round folding rail (R=2.5/5/10mm)
- Frequency/servo drivven motors for both clamping and folding beams
- Hardened rails and tools (undivided HRC 45, divided HRC 55)
- Automatic lubrication
- Movable foot switch on rail
- Movable tool cart for divided tools
- Extra foot pedal with key switch
