Description

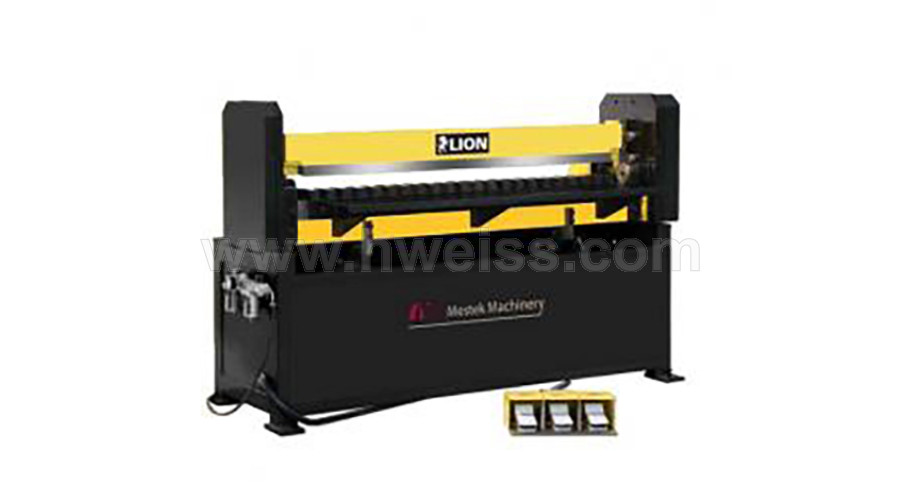

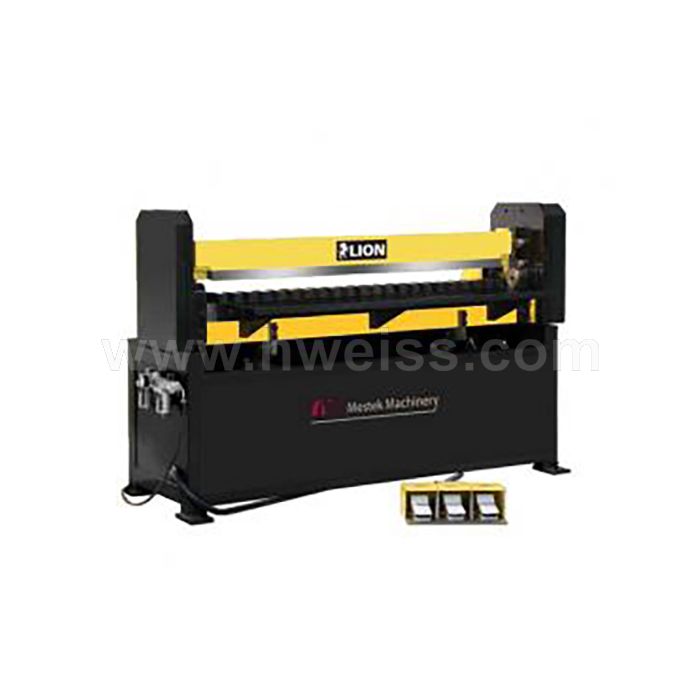

The Lion Pnuema TDC Wrap Brake is the ideal machine for forming L Section, U Section and Wrap Section, TDC and TDF Duct.
This machine has the following features:
– Rugged Welded Steel Construction
– Maintenance-Free Bearing & Guides
– Pneumatic Drive For Clamping Beamwith Automatic Return
– Pneumatic Drive For Folding Beam with Automatic Return
– Pneumatic Operated Pedal Control
– Dial-Adjustable Bend Angle 0 to 90°
– Automatic TDC/F Notch Locator
– Safety Interlock Controls
specifications
Max Bend Length - 60” (1524 mm)
Max Material Thickness - 16 gauge (1.6 mm)
Air Supply - 11 CFM of Clean/Dry @ 100 PSI (Not to exceed 120 PSI)
Min Wrap Duct Size - 8 3/4” x 8 3/4” (220 x 220 mm)
Weight - 1950 lbs. (880 kg)
Size - 88" x 46" x 33" (2230 x 1152 x 823 mm)
