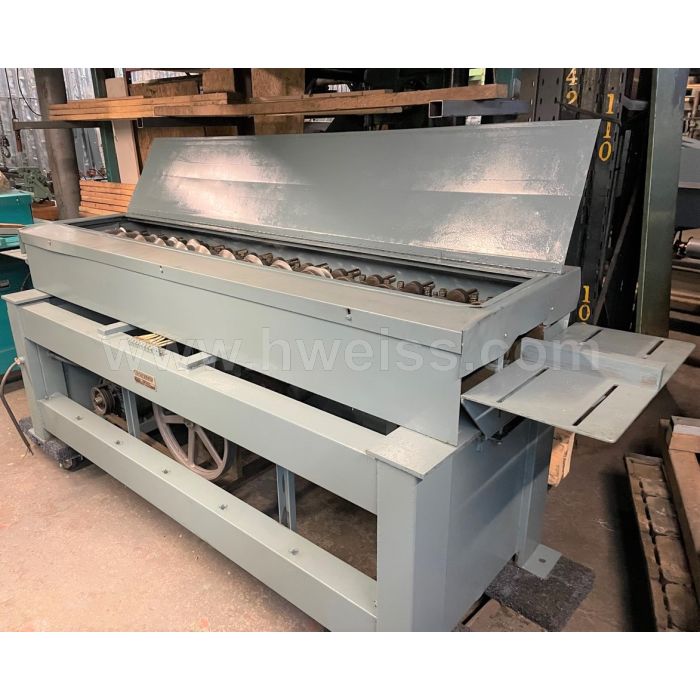

Lockformer 14 Station New England Cleat Rollformer

Manufacturer: Lockformer

Condition: Very Good

Location: F.O.B New York

Description:

Lockformer 14 Station with New England Cleat Rolls and OPTIONAL Whitney Punch Press with NE Cleat Die Set

$12,500.00

$238/MONTH
Description

Lockformer 14 Station with New England Cleat Rolls and OPTIONAL Whitney Punch Press with NE Cleat Die Set

specifications

FORMING STATIONS - 14

ROLL SPACE - 8"

HORIZONTAL ROLL CENTERS - 6"

VERTICAL ROLL CENTERS - 3-1/2" Standard

SHAFT EXTENSIONS - 3-3/8"

SHAFT DIAMETER - 1-1/8"

FORMING SPEED - 70 FPM

MOTOR - 7-1/2HP; 230/460 Volt; 3 Phase

Weight - 2,500 lbs.

accessories

SINGLE EXTENDED SHAFT FOR OUTBOARD ROLLER TOOLING:

- 1/2 or 1" Combination 3-in-1 Clinch Rolls (16 Gauge)

- 1-1/8", 1-1/4" or 1-1/2" Combination Standing Seam & Right Angle Flange (16 Gauge)

- Pittsburgh Lock (16 Gauge)

- Reinforced Center Drive Cleat (22 Guage)

PLEASE CALL FOR OPTIONAL ROLL SETS
