Description

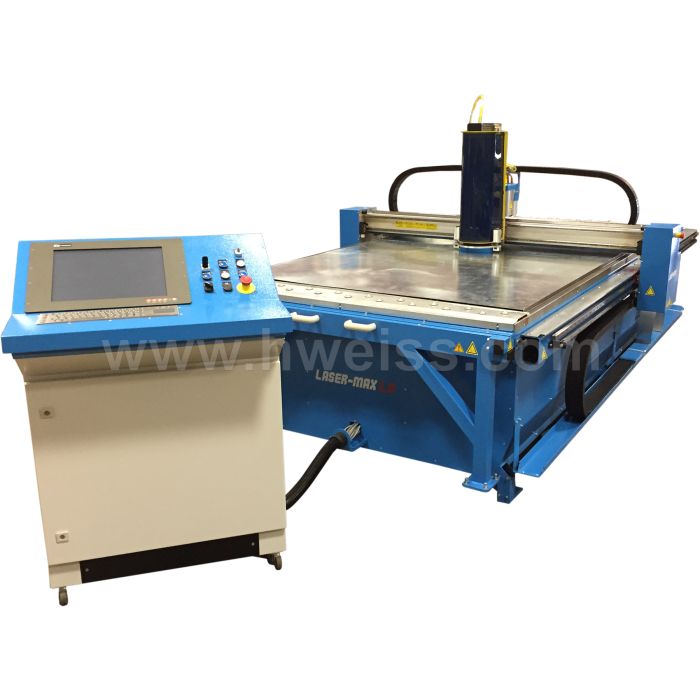

The next evolution in the Vulcan cutting systems is the Laser-Max 1.5.
With cutting speeds up to 98 fpm on thinner materials (24-26ga), it is the fastest machine on the market by far.
In addition, with minimal heat affected zone on the cut edge, the parts coming off the machine will cause less wear to downstream fabrication equipment. Minimal kerf combined with 4-axis controls enable the cutting of intricate patterns.
specifications
COMPUTER SYSTEM
Office PC with 19″ Monitor & Printer Machine
SOTWARE
Vulcan 6XP HVAC
MACHINE CONTROL
Mach 3 & Color Graphic Industrial Touch Screen
CUTTING UNIT
IPG 1 KW Cutting Capacity 0.125″ Mild Steel, Mild Steel Optical Cutting Capacity
CUTTING AREA & TABLE CAPACITY
Standard: 5×10 - Optional:5×20 Table - Capacity: 350lbs
SPEED
Positioning speed 1,100 IPM Max
APRROXIMATE DIMENSIONS
Length: 168″ Width: 96″ Height: 63″ Weight: 3,200lbs
features
Laser cutting uses less heat – edges are not hardened leading to less wear and tear on other machinery
•Exclusive Patent – pending technology allows operator to access parts directly from the table and eliminates need for a pallet shuttle system
•Coil feeding made easy as full table enclosure is eliminated – Laser-Max 1.5 can be sheet or coil fed
•Laser-Max 1.5 features an IPG brand laser – the market leader in fiber laser cutting
•Running speed up to 98 fpm on thinner materials (24-26ga)
•All rack and pinion 4-axis (2-y, 1-x, 1-z) controlled. Z is servo driven with automatic torch height
