Description

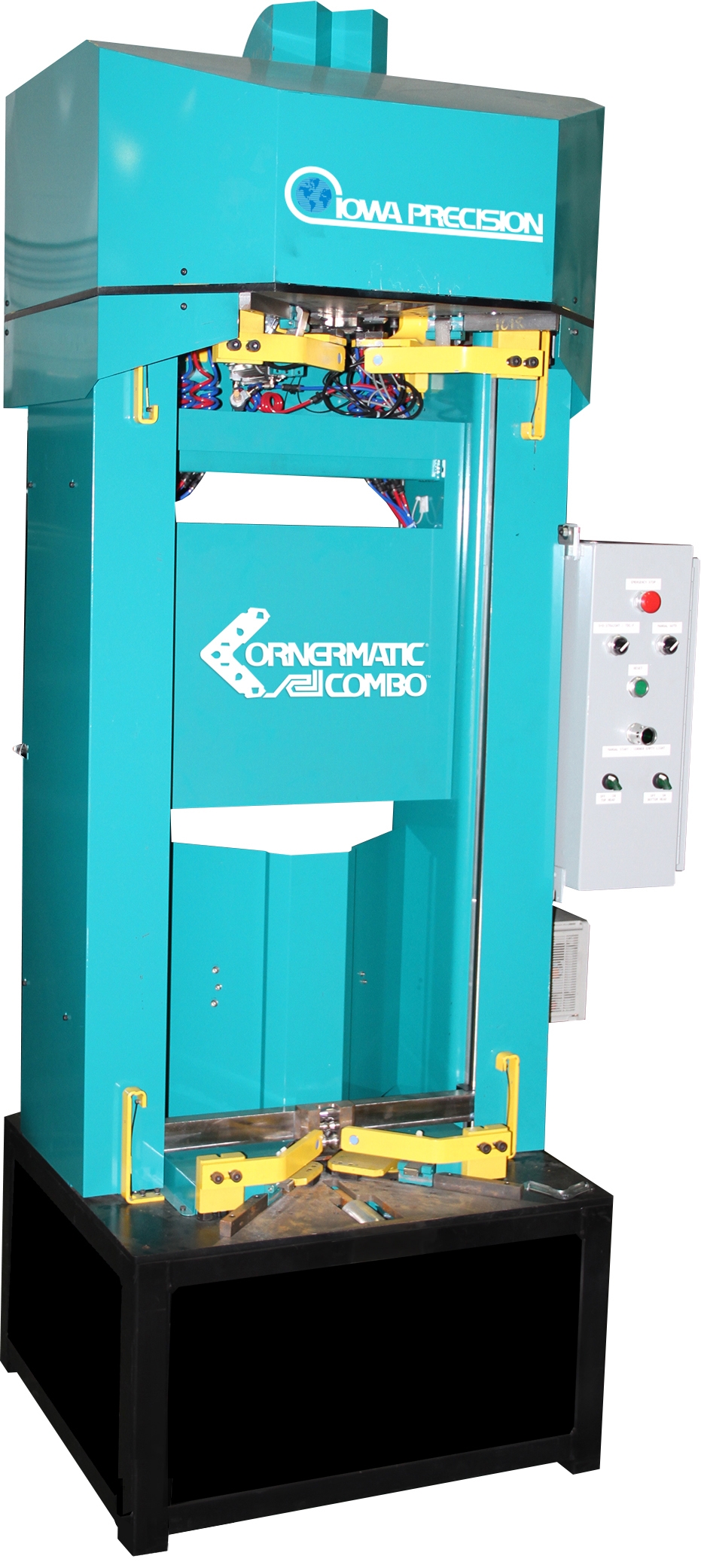

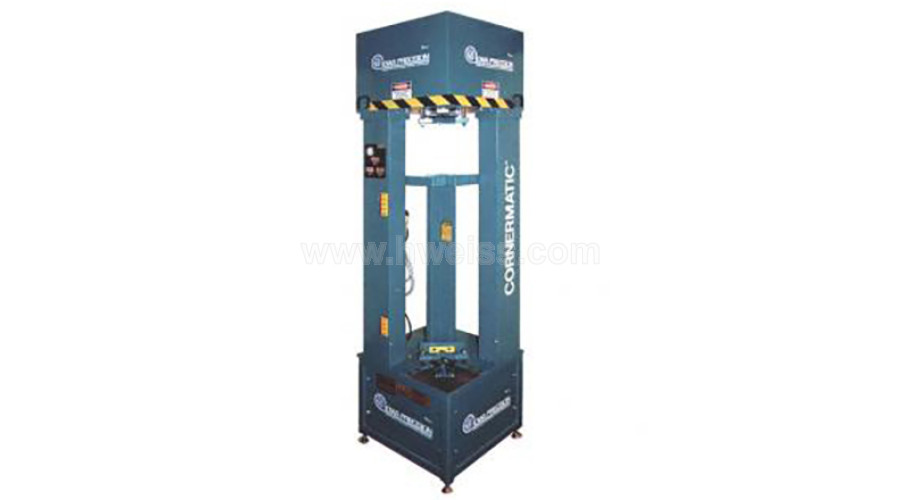

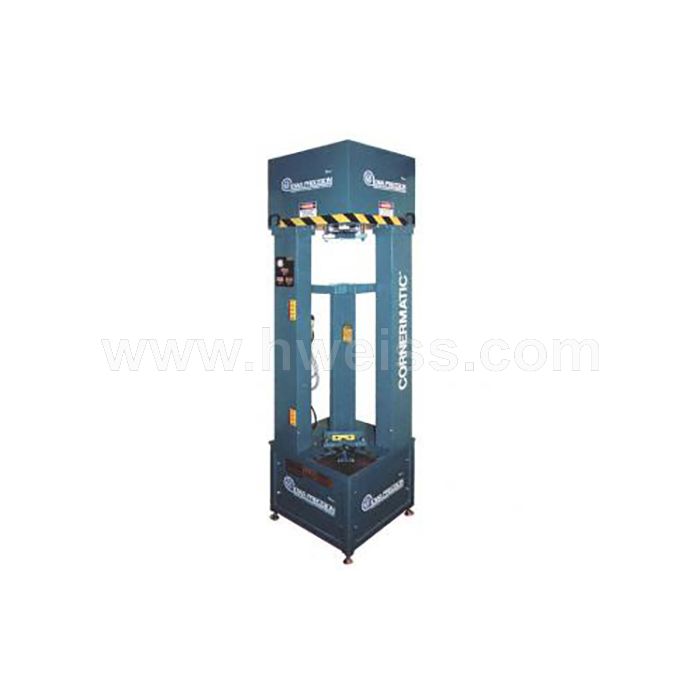

Adjustable Dual Head Cornermatic® 3 adds the feature of automatically adjusting the upper crimping head to handle duct from 48? to 72? in length. The Dual Head Cornermatic3® automatically inserts and crimps specially designed TDC/TDF® style corners in seconds. Lets you do a duct section, eight corners, in about 60 seconds with virtually no physical exertion. Compared to other methods of hand insertion and crimping, it’s a saving of 3 to 6 minutes per section of ductwork depending on size and gauge.
specifications
- Air: 85 – 100 PSI (5.5 – 7 Bar)
- Electrical: 110VAC, 60 Hz
- Capacity: 18 to 26, 16 ga
- Dimensions: 24-1/8” x 24-1/8” x 116” (613 x 613 x 2946mm)
- Weight: 1,400 lbs
features
- Handles duct up to 60?
- Corners are inserted square and fully crimped.
- No need to change the crimping adjustment when inserting corners in 18 to 26 gauge ducts, 16 gauge capacity optional.
- Each quick loading magazines hold up to 175 corners.
- Corners are shipped presorted and oriented for direct loading into the magazine.
- No need for hand sorting.
- Push the ductwork or fitting into the flange guides and the machine automatically does the rest.
