Description

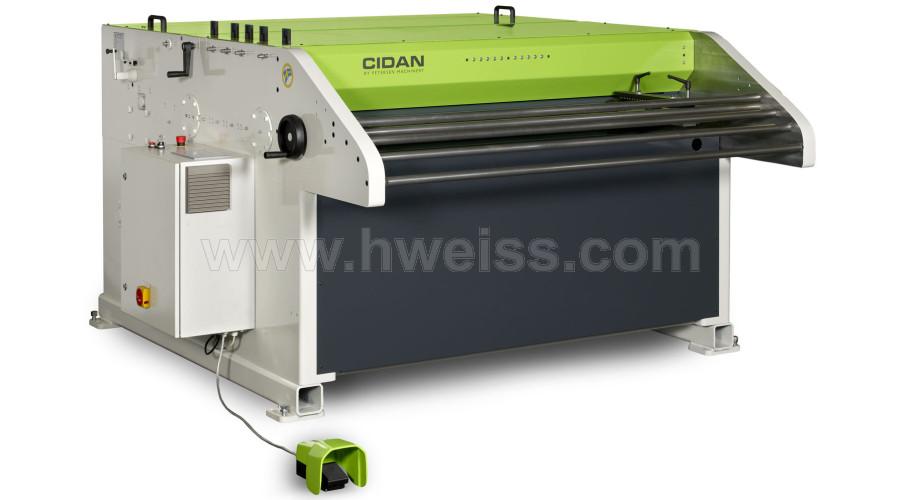

CIDAN cut to length line TURBO comes in two different configurations made for coil widths 1250 mm (49") and 1550 mm (61").
specifications
- Working length mm ("): 1550 (61)
- Steel Thickness mm (ga): 2 (14)
- Stainless Steel Thickness mm (ga): 1.25 (18)
- Aluminium Thickness mm ("): 3 (0.118)
- Speed m/min (feet/min): 30 (90)
- Motors kW (hp): 2.2 (3)
- Weight kg (lbs): 3360 (7410)
features
- TURBO is designed with 50 mm (2") heavy duty side frames for feeding, straightening, slitting and cut to length.
- The rolls are gear driven and the heavy solid rolls and other parts have been dimensioned for high production in maximum capacity.
- TURBO has two sets of feeding rolls (one roll in each set is polyurethane coted) and seven straightening rolls as standard.
- TURBO will handle pre-painted sheets and other sensitive materials with the option of having the straightening rolls chromed which minimizes scratches and marks on the surface.
- Straightening unit with seven rolls (diameter 110 mm / 4.33")
- Sheet guide for in-feed
- Guillotine shear with hold down beam and double edged blades
- 2 sets of feeding units with each 2 rolls (2 polyurethan coated)
- Programmable control system LineLink with touch screen and multiple languages
- Control panel on the left side
- Central lubrication
- Foot pedal for remote feeding
- Slitting unit with 1-8 pairs of slitting knives
- Device for adding protective foil on one or two sides of the sheet, with brake
- Hardened rolls -for stainless steel applications
- Chromed rolls -for sensitive materials
- Control panel on the right side
- Manual or motorized decoilers
- Stacking systems
- Recoiling systems
- Scrap rewinder (on customer request)
- Forced cooling for cutting motor (for repetitive high volume cuts)
