Description
The Pittsburgh Lock revolutionized the HVAC Industry in the late 1930’s and is still used today for its strength and ease in assembling ductwork.

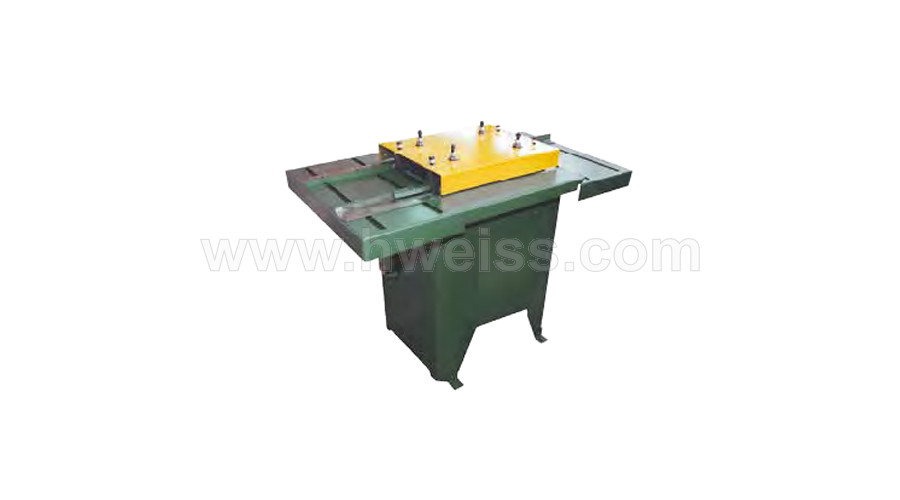

The HB-800 Series Pittsburgh rollforming machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles. Versatile. Roll tooling can be changed out.
specifications
- Capacity: 20–26 gauge
- Depth Of Pocket/Size: 5/16" Uses approximately 1"of material
- Other: Width of hammer-over edge adjustable up to 3/8". Extended shafts for mounting auxiliary rolls.
- Speed: 25 feet per minute
- Motor/Voltage: 115/230 volts, 60 cycle, single phase, A. C. 1,800 RPM. Other motors available upon request
- Dimensions: Length - 48", Width - 24", Height - 42", Passline - 34"
- Weight: 450 lbs
