Description

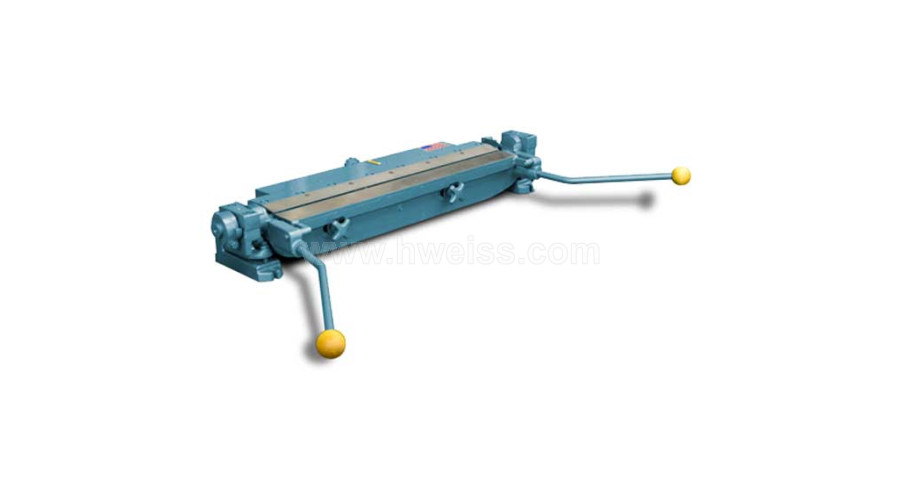

The No. 63 bar folder is a versitle, adjustable machine that performsmany essential sheet metal operations using one motion to clamp and fold. The No. 63 accomodates up to 30 inch material with a maximum of 22 gauge. A quick set back gauge is included. There is also an optional floor stand.
specifications
- Maximum folding length: 30 in/ 762 mm
- Capacity, mild steel: 22 ga/ 0.76 mm
- Back gauge adjustment: 1/8 – 1 in/ 3.17 – 25.4 mm
- Maximum round fold diameter (for wire): 1/4 in/ 6.35 mm
- Dimensions: 42 x 26 x 7 in
- Weight: 325 lbs
