Description

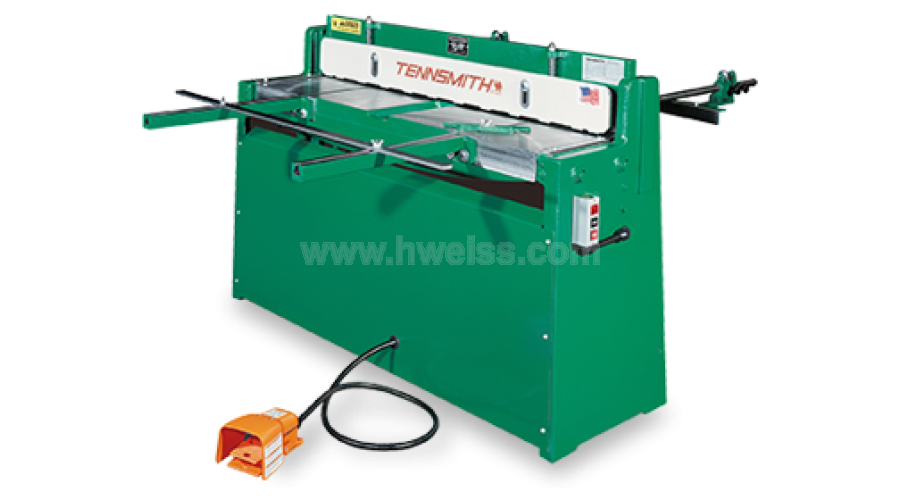

TENNSMITH power squaring shears provide features designed for shearing efficiently and accurately equal the demands of present day productivity. The Air Shears utilize heavy-duty, tie rod type pneumatic cylinders, which provide up to 40 strokes per minute in capacity material. A foot operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded hold down feet are standard features.
specifications
Weight: 1200 lbs
Dimensions: 72 x 48 x 36 in
Maximum shearing capacity: mild steel 16 ga / 1,6 mm
Maximum shearing capacity: stainless steel 20 ga / 1,0 mm
Maximum cutting length: 52 in / 1320 mm
Back gauge range: 30 in / 762 mm
Front gauge range: 37 in / 940 mm
Floor space, gauges in position: 60 x 76 x 42 in / 1524 x 1930 x 1070 mm
