Description

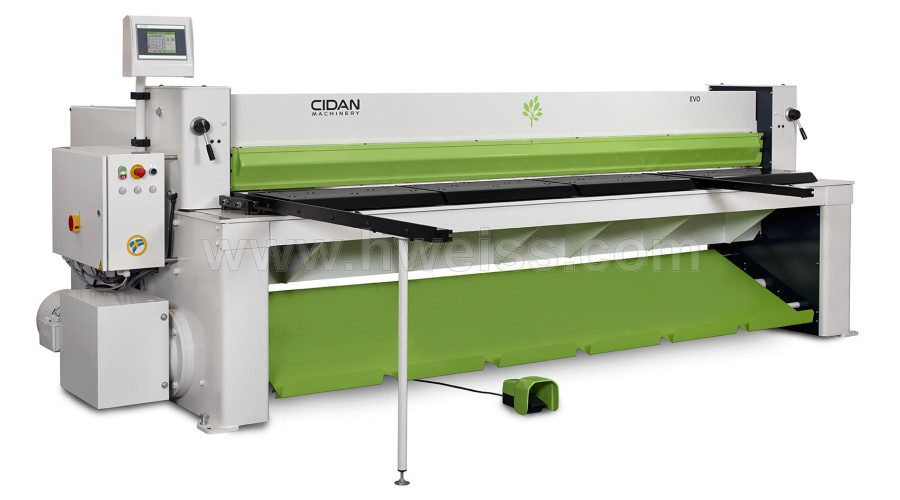

The CIDAN EVO 30 is the strongest mechanical guillotine shear in the Cidan program. The EVO is supplied with blade gap adjustment as a standard feature. The blade gap adjustment makes it possible to achieve the best cutting result in all kinds of sheet thicknesses. The blade gap is set quickly and correctly via handles and scales.
specifications
- Cutting Width: 3100 mm
- Cutting Capacity Steel: 4.00 mm
- Cutting Capacity Stainless Steel: 2.25 mm
- Cutting Capacity Aluminum: 5.50 mm
- Speed: 28 Cuts Per Min
- Main Motor: 5.5 KW
- Length: 3482 mm
- Height: 1322 mm
- Width: 1600 mm
- Weight: 2180 kg
features
- Sturdy, low-noise gear motor
- Single or continuous stroke control
- Double edged blades
- Finger protection
- Blade gap adjustments
- Spring loaded hold down beam
- Squaring arm with scale (380mm)
- Foot pedal to start the cut
- Pneumatic Sheet support with return plate (blanks to front side of shear)
- LED cutting light
- Manual back gauge 0-800mm operated from the front side
- Motorised back gauge incl. CutLink Control and ball screw spindles
- Pneumatic sheet support with rolls 1000mm (blanks to rear side of shear)
- Pneumatic sheet support with return plate (blanks to the front side of shear)
- Movable blank wagon instead of fixed plate wagon (extra blank wagon available)
- Pneumatic hold down beam for use with soft material
- Adjustable angle gauge system with graduated scale
- Safety guards for machine back side – mechanical with light guard, 750/800mm or 1000mm
- Squaring arm 650mm or 1000mm with or without tilting stops
- Support arms in front (650mm or 1000mm) with or without tilting stops
- Forced cooling for cutting motor
