Description

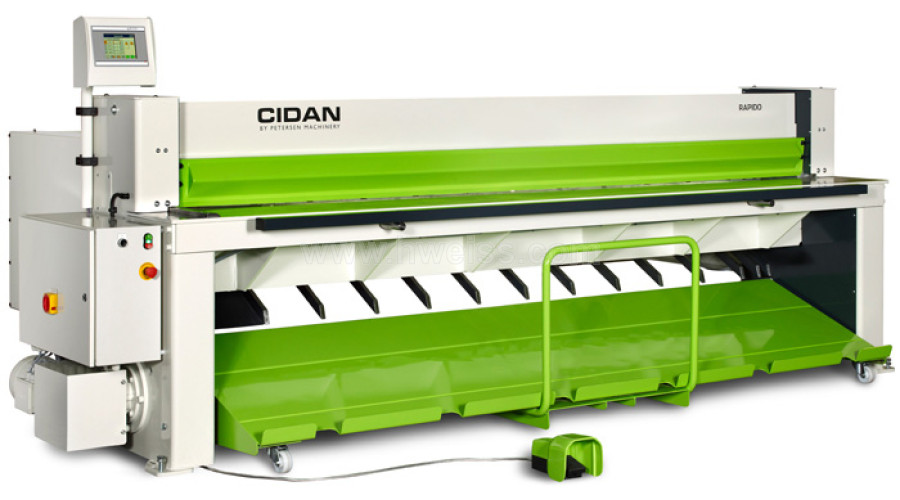

The CIDAN RAPIDO 30 is a heavy duty built mechanical guillotine shear. It will cut material with thicknesses from minimum to maximum without any settings at all. This shear again proves our philosophy regarding the environment as it uses very little energy and has a very low noise level. The shear is well equipped as standard and also has a wide range of options such as different back gauges systems including sheet handling systems.
specifications
- Cutting Width: 3100 mm
- Cutting Capacity Steel: 2.5 mm
- Cutting Capacity Stainless Steel: 1.5 mm
- Cutting Capacity Aluminum: 4 mm
- Speed: 35 Cuts Per Min
- Main Motor: 3.0 KW
- Length: 3741 mm
- Depth: 1759/1995 mm
- Weight: 2100 kg
features
- Single or continuous stroke control
- Double edged blades
- LED cutting line light
- Finger protection
- Squaring arm with scale (380mm)
- Table with measuring lines
- Spring loaded hold down beam
- Button to start the cut at the electrical cabinet
- Foot pedal to start cut
- Pneumatic sheet support including return plate (blanks to front side of shear)
- Manual back gauge 0-800mm operated from the front side
- Motorised back gauge incl CutLink Control and ball screw spindles, 750mm or 1000mm
- Movable blank wagon instead of fixed plate wagon (extra wagons available)
- Pneumatic hold down beam for use with soft material
- Mechanical safety guards for machine back side, 750/800mm or 1000mm
- Table extension 800mm
- Adjustable angle gauge system with graduated scale
- Squaring arm with T-groove, 1000mm incl. 1 tilting stop (additional stops as option)
- Forced cooling for cutting motor
