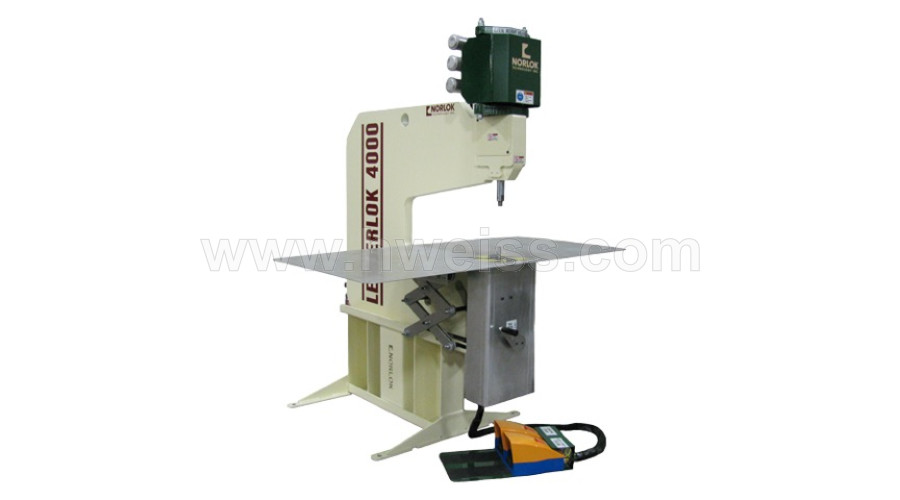

Norlok Letterlok 4000

• Throat 25": Choose the depth of frame behind punch
• Tooling: 1 Punch and 1 Die included with machine
• Tooling Retracts below Table: Large letters and script are easy to insert and remove
• Quick Adjustments: Fast and easy to adjust for various material thickness. Under 5 minutes
• 8 ¼” Stem: Fits large 10" letters. Safe Low Pressure closing. Easily insert your largest letters into the work area
• Easy table adjustment for different letter heights: 1 touch operation raises and lowers the table pneumatically
• Laser pointer: Shows where clinch will be made – easy to use – meets all regulations for laser pointers
• Air Filter / Regulator / Shutoff: Nothing to add – just plug your air line into the shut off valve
• Extended Warranty: standard warranty is 1 year (punches and dies excluded)

• New Development SPR (Self Peircing Rivet) tooling option
• Faster cycle times for increased production (60 – 80 cycles a minute)
• Greater capacity clinches 2” – 10” deep letters
• Larger table 30” x 60” for operator convenience
• UL recognized clinch for channel letters
• Simple tooling adjustment for little or no set-up time
• Air powered (no electrical hook-ups necessary)
• Foot pedals operate lower tooling and clinch cycle for increased productivity
• Over 20 years of design experience, proven reliability and quality
• Affordably priced for low investment and faster payback

CATALOG_LL4000.pdf
