Description

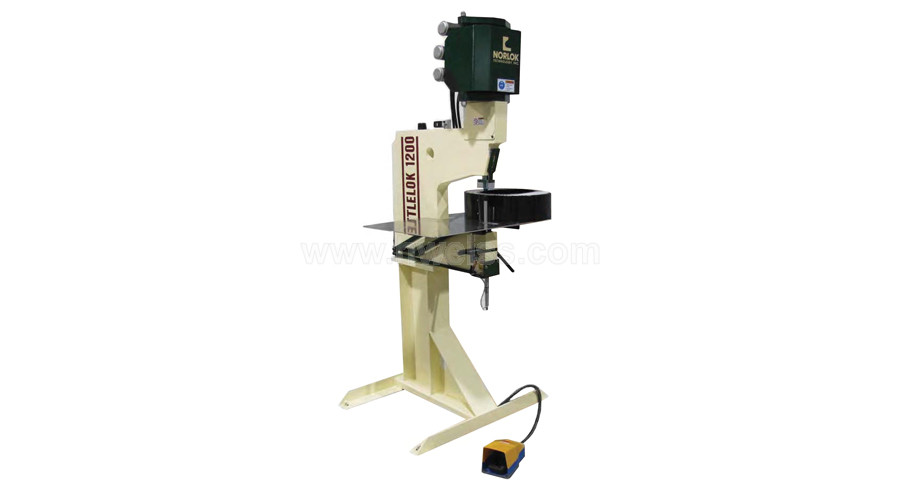

Designed to easily fasten channel letters, the Littlelok 1200 machine has a 12” throat and can accommodate a 6”return, making short work of all your channel letter fastening projects. Whether it is your main fastening machine or a sibling for an existing Littlelok product, the Littlelok 1200 has all the features you need to effectively clinch and fasten channel letters.
specifications
- Press Design: 3” Solid steel “C” frame
- Stroke: 3 1/2” low pressure closing stroke 1/4”-3/8” high pressure clinching stroke
- Throat: 12”
- Table: 18” deep x 34” wide
- Work Height: 44”
- Lower Tooling: Die insert set in a hardened die holder
- Upper Tooling: Fast change punch Replaceable punch stripper Adjustable to suit material thickness
- Capacity: MAX: Combined thickness of 0.125” MIN: Two ply 0.024” Aluminum MAX: Two ply 0.040” Mild Steel MIN: Two ply 0.015” Mild Steel
- Cycle speed: Clinching stroke 60 – 80 CPM. 100% duty cycle
- Air Requirements: 65 psi (operating) 125 psi (max supply) 80 psi (min) Approx. 12-13 SCFM @ 65 PSI. (80 clinches per minute)
- Dimensions: Width 36” (overall), Length 34” (overall), Height 74” (overall)
- Weight: 700 lbs
features
- 12” throat
- Accommodates a 6” return
- Operate at 60-80 cycles per minute
- Maximum combined material thickness of 0.125”
- 100% air powered
- Adjustable table
- UL recognized clinch for channel letters
- WAMP pneumatic power unit
- Single shot auto return
