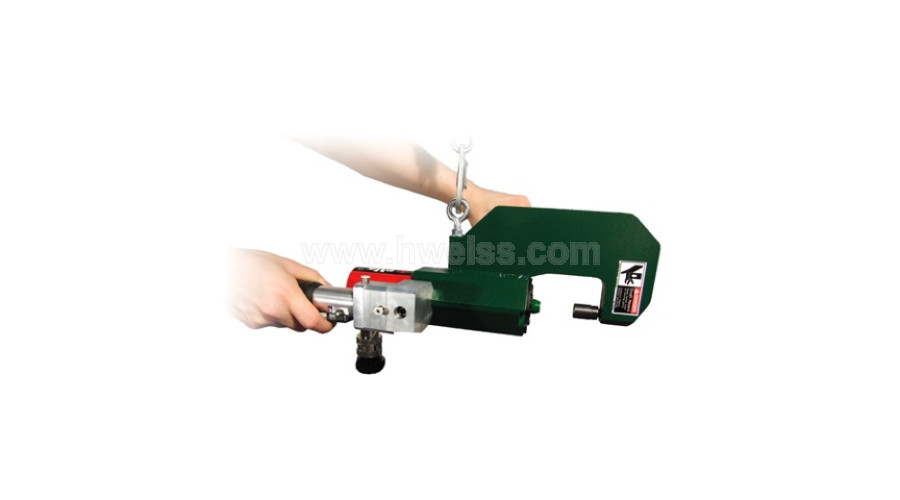

Norlok Medium Duty Watson

• Press Design: Single steel “C” frame
• Stroke: 1-½” (up to 1-¾”)
• Throat: 2”
• Upper Tooling: Fast change punch Replaceable punch stripper
• Lower Tooling: MDWA insert style Adjustable to suit material thickness
• Medium Duty Capacity: (0.18”Ø PUNCH)
• Capacity MAX: Two ply 0.075” mild steel
• Capacity MIN: Two ply 0.010” mild steel
• Cycle speed: 20 CPM (standard speed mode) 20-30 CPM (with modified stroke)
• Air Requirements: 70 psi (min) 125 psi (max) 100 psi (recommended) Approx. 0.8 cu ft free air per cycle (5 HP @ 40 clinches per minute)
• Intensifier Width: 16”
• Dimensions: Length 16”, Height 18”, Weight 47 lbs
• Weight (Hand tool only): 16 lbs (Hand tool only)

• Lightweight for great portability
• Safety stroke for greater operator safety
• Simple tool adjustments for little or not setup time
• Close tooling access to get in close for more applications
• Can fasten up to 2-ply 14 gauge material.
• Air powered hydraulic booster
• Easy maintenance for less down time
• Competitively priced for low investment and fast payback
• Fully customizable designs to fit your needs
• Trigger operation
• Air over oil intensifier included
• Single shot pressure sensing return
• Can be operated in any position
