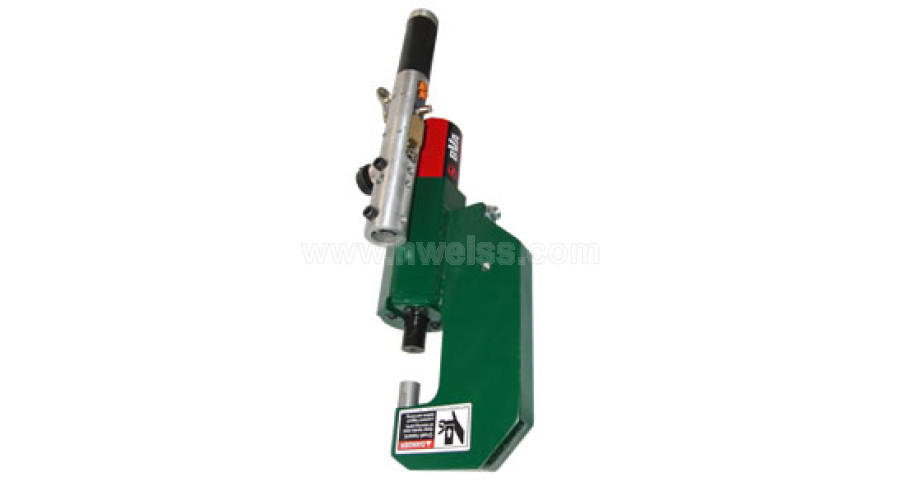

Norlok Slip On Flange Watson

Manufacturer: Norlok Technology

Condition: NEW

Location: F.O.B Factory

Description:

A more light-weight version of the Medium Duty Watson, the Slip-on Flange Watson is a commonly customized machine that ensures accurate clinching up to 3-ply 18g. The Slip- on Flange Watson model eliminates painful rivets, nails or screws during clinching.

Description

A more light-weight version of the Medium Duty Watson, the Slip-on Flange Watson is a commonly customized machine that ensures accurate clinching up to 3-ply 18g. The Slip- on Flange Watson model eliminates painful rivets, nails or screws during clinching.

specifications

  • Press Design: Single steel C-Frame
  • Operation: Dual Trigger – with toggle to close height
  • Power: Air over oil intensifier
  • Return: Pressure sensing (adjustable) 24 vDC
  • Stroke: 1-1/2" (38mm)
  • Throat: 1.56" (39mm)
  • Capacity: Max: 3-ply .055" (1.4mm) or total thickness of .150" (3.8mm)
  • Cycle time: 50 CPM standard @ 1/4" opening
  • Air requirements: 70psi min (80psi recommended) Approximately 0.8 cu/feet per cycle
  • Power requirements: Any international supply within 120 – 240 VAC 50/60 HZ
  • Hanging: Optional spring balancer available
  • Weight (Hand tool only): 18 lbs (8.7kg)

features

  • No consumables
  • Clean operation
  • Safe handling parts for operators and installers
  • Air powered
  • Consistent connections
  • Clinch up to 3-ply 18g
  • Fastens easy to clean ductwork
  • Stainless steel capable
