Description

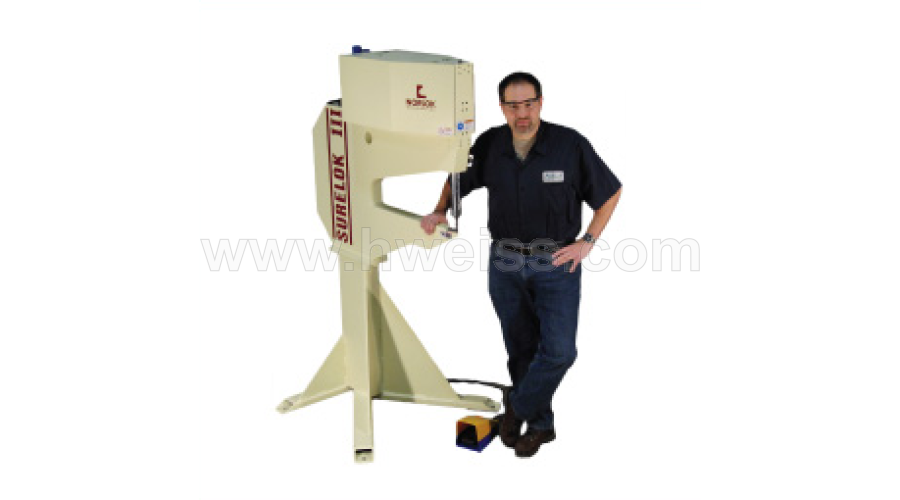

The new SURELOK III is designed for all clinching applications and is faster, smoother, quieter and uses less air than ever before. Our stainless steel ready machine offers a no hassle 2 minute changeover for efficient operation and production.
specifications
- Throat 25": Choose the depth of frame behind punch
- Round Punch: Comes with 1 punch, 3 Dies, Punch Stripper, and Die Collar
- Close reach lower arm: Clinch in tight areas – also great for pipes
- 2 piece die holder and insert: Fast to change and easy to clean
- Adjustable 2 1/2" stroke: Adjust open height to minimize pinch point
- “Intelligent” Safety stroke: Reduces pinch point to less than 1/4" (6.4mm) even with 2 1/2" (64mm) stroke
- High speed control: 1 touch operation with increased speed & reliability – includes pressure sensing circuit
- Laser pointer: Shows where clinch will be made – easy to use – meets all regulations for laser pointers
- Air Filter / Regulator / Shutoff: Nothing to add – just plug your air line into the shut off valve
- Extended Warranty: Standard warranty is 3 years (punches and dies excluded)
features
- 25” throat
- Stainless steel ready with simple punch and die changeover
- Clinches material with 5 tons of force smoothly and efficiently using only 90psi shop air.
- Tooling adapters designed for sheet metal work that needs a 5 ton press.
- Adjustable 2 1/2” stroke
- Convenient adjustment for accuracy and safety
- Self Piercing Rivet kit available for any SURELOK III to join aluminum composite materials, TPO and PVC coatings. No pre drilled holes required.
