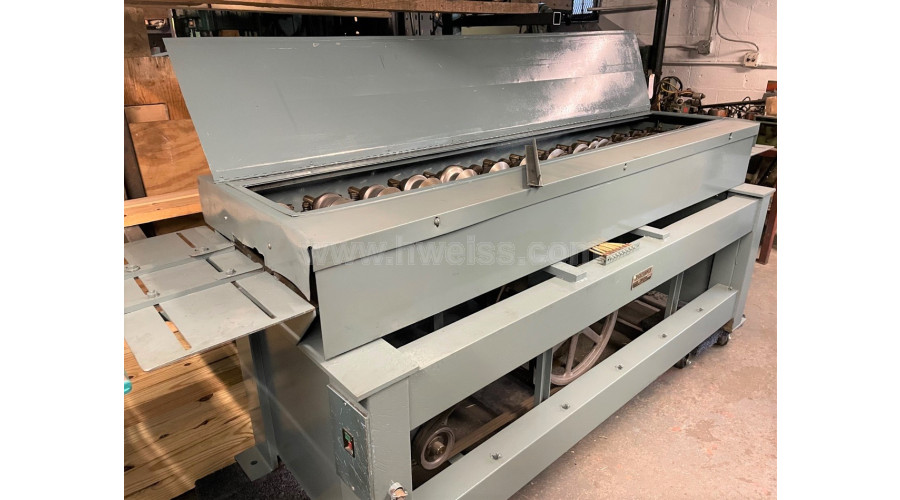

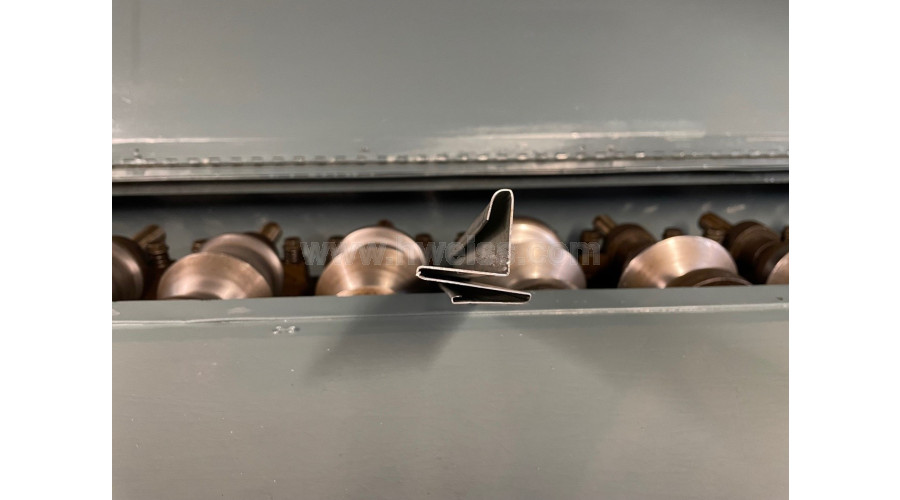

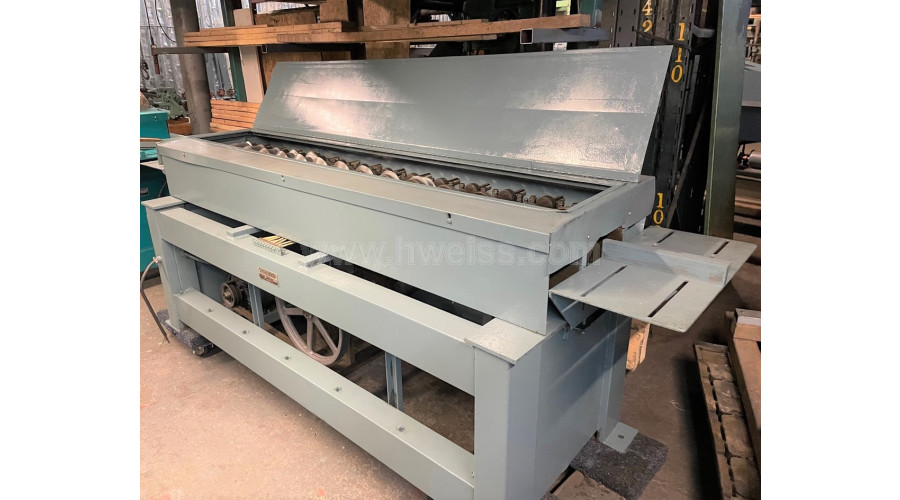

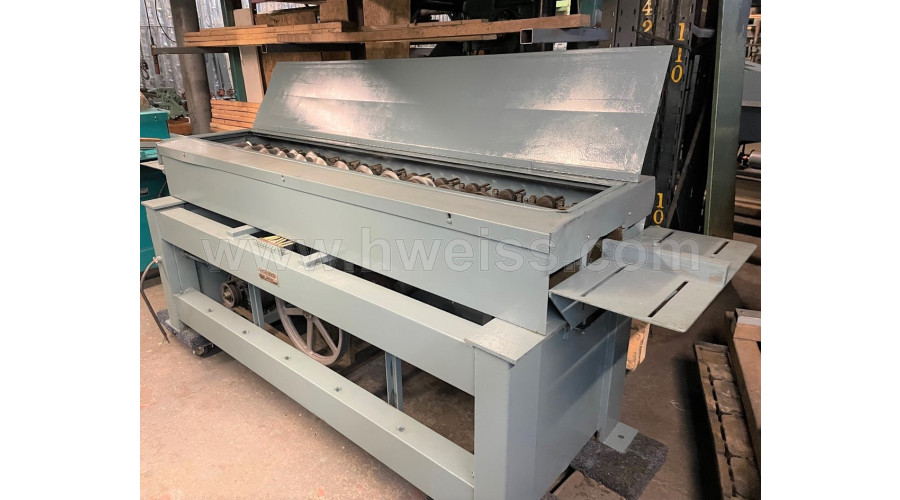

Lockformer New England Cleat Rollformer

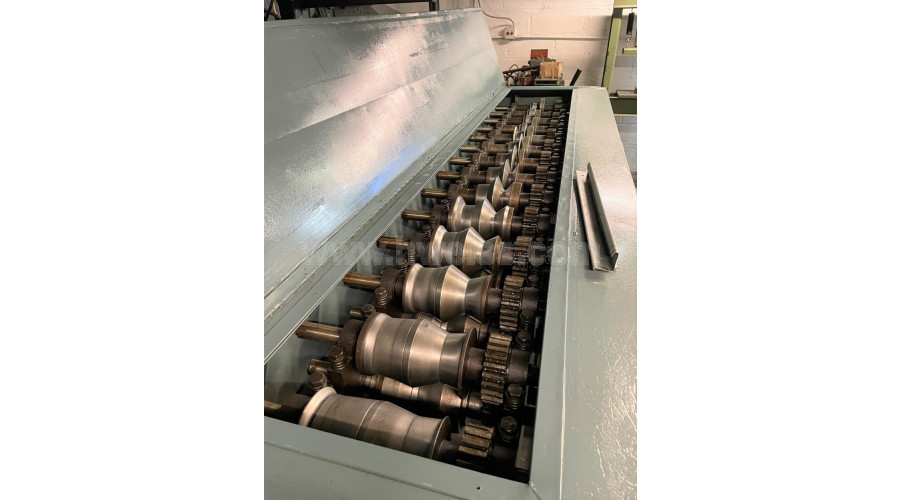

FORMING STATIONS - 14

ROLL SPACE - 8"

HORIZONTAL ROLL CENTERS - 6"

VERTICAL ROLL CENTERS - 3-1/2" Standard

SHAFT EXTENSIONS - 3-3/8"

SHAFT DIAMETER - 1-1/8"

FORMING SPEED - 70 FPM

MOTOR - 7-1/2HP; 230/460 Volt; 3 Phase

Weight - 2,500 lbs.

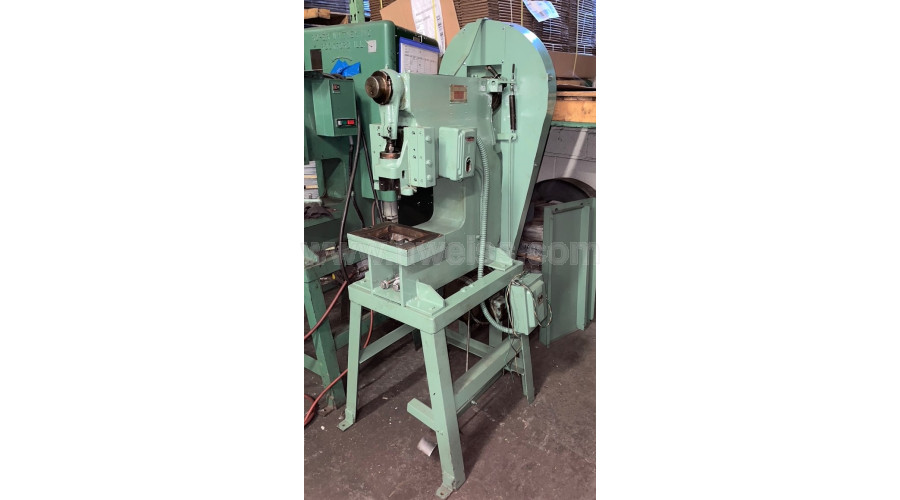

OPTIONAL PUNCH PRESS WITH NEW ENGLAND CLEAT DIE  SET

DOUBLE EXTENDED SHAFTS FOR OUTBOARD ROLLER TOOLING:

- 1/2 or 1" Combination 3-in-1 Clinch Rolls (16 Gauge)

- 1-1/8", 1-1/4" or 1-1/2" Combination Standing Seam & Right Angle Flange (16 Gauge)

- Pittsburgh Lock (16 Gauge)

- Reinforced Center Drive Cleat (22 Guage)

PLEASE CALL FOR OPTIONAL ROLL SETS
