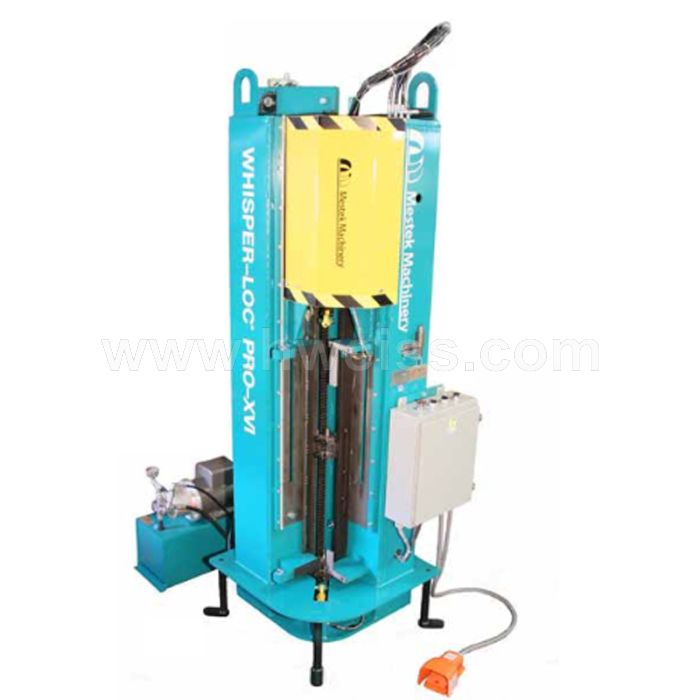

Iowa Precision PRO-XVI - Vertical Whisper-Loc

Manufacturer: Iowa Precision Industries

Condition: NEW

Location: F.O.B Factory

Description:

The PRO-XVI is equipped with push button motor controls for quick-change duct lengths and is chain driven!

Description

The PRO-XVI is equipped with push button motor controls for quick-change duct lengths and is chain driven!

specifications

  • Capacity: 16 gauge
  • Other: Duct Length: 3, 4, 5, 6 ft (914/1219/1524/1829mm)
  • Motor/Voltage: 2 HP - 220/1/60
  • Dimensions: Length - 96", Width - 35", Height - 32½"
  • Weight: 1,550 lbs

features

  • Closes duct work - whether Pittsburg or slip and drive - seams in a fraction of the time
  • Motorized control moves the clamp and slide block,as a unit, for faster set up - one handed
  • Greatly reduced noise levels
  • Minimal floor space required
  • Micro-processor controlled for ease of operation
  • Low maintenance 220 V single phase 2 HP (1.5 kw)
  • Self-contained 10-gallon (38 liter) hydraulic unit
  • The Whisperloc-PRO16 closes seams in ducts only requiring a minimal of hammer over top and bottom to assure straight and complete seaming
  • Unlike competitive models that require extensive manual hammer over in Pittsburgh and full length hammer over of at least 45° in slip and drive
  • Seams from top and bottom to the middle to avoid run out and incomplete seaming of full-travel models
