Description

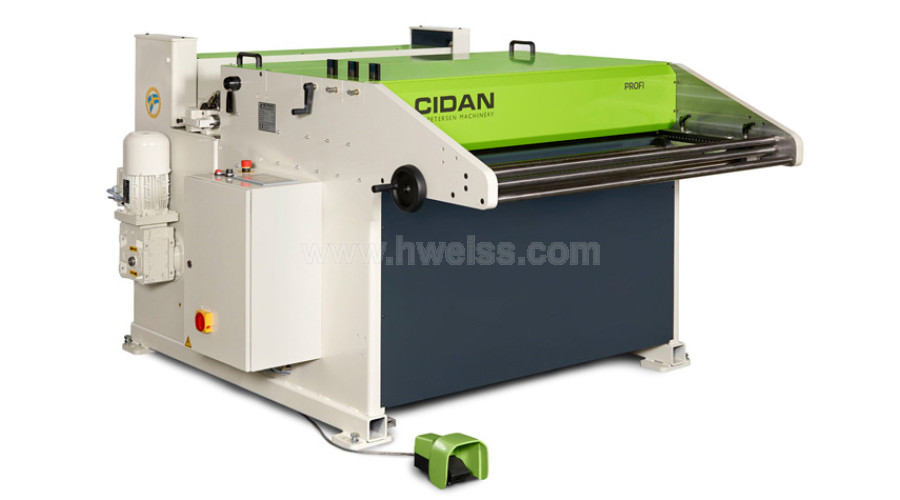

CIDAN cut to length line PROFI comes in five different configurations made for coil widths 1250 mm (49") and 1550 mm (61"). PROFI is designed with heavy duty side frames for high demanding production.
specifications
- Working length mm ("): 1550 (61)
- Steel Thickness mm (ga): 1.5 (16)
- Stainless Steel Thickness mm (ga): 1 (20)
- Aluminium Thickness mm ("): 2.25 (0.088)
- Speed m/min (feet/min): 20 (60)
- Motors kW (hp): 1.5 (2)
- Weight kg (lbs): 2750 (6063)
features
- PROFI can be supplied with a wide range of options in order to fulfill different customer demands.
- Cut to length is done by a heavy duty mechanical shear.
- PROFI will handle pre-painted sheets and other sensitive materials, with the option of having the straightening rolls chromed which also minimizes scratches and marks on the surface.
- Straightening unit with 7 rolls (diameter 110 mm / 4.33")
- Sheet guide for in-feed
- Guillotine shear with hold down beam and double edged blades
- 2 feeding rolls (1 polyurethan coated)
- Programmable control system LineLink with touch screen and multiple languages
- Control panel on the left side
- Foot pedal for remote feeding
- Slitting unit with 1-8 pairs of slitting knives
- Device for adding protective foil on one or two sides of sheet, with brake
- Hardened rolls -for stainless steel applications
- Chromed rolls -for sensitive materials
- Control panel on the right side
- Manual or motorized decoilers
- Stacking systems
- Recoiling systems
- Punching unit (on customer request)
- Scrap rewinder (on customer request)
- Forced cooling for cutting motor (for repetitive high volume cuts)
