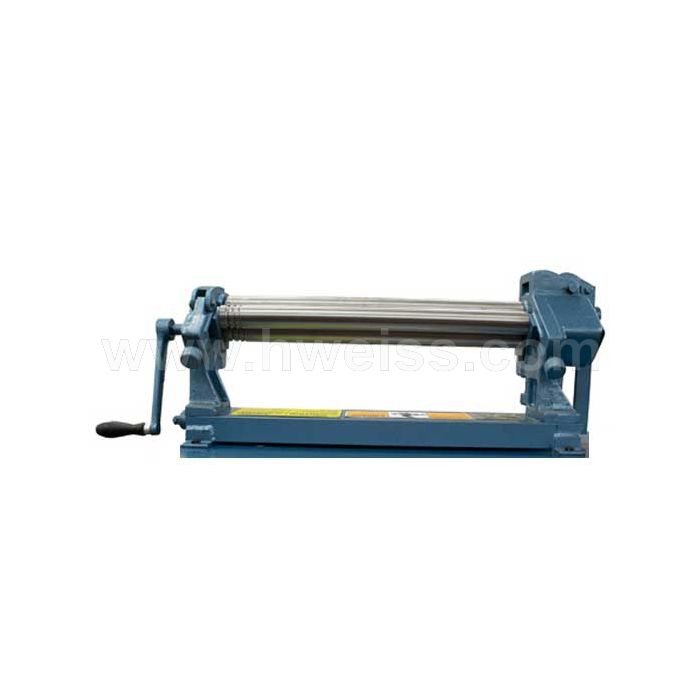

Roper Whitney 383 Manual Slip Roller (24" x 2” Dia.)

Manufacturer: Roper Whitney

Condition: NEW

Location: F.O.B Factory

Description:

The No. 383 manual roll has 2? precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16?, 1/4? and 5/16?. All rolls are standard wih fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 24? with a thickness capacity of 20 gauge mild steel.

Description

The No. 383 manual roll has 2? precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16?, 1/4? and 5/16?. All rolls are standard wih fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 24? with a thickness capacity of 20 gauge mild steel.

specifications

  • Maximum capacity, Mild Steel: 20 ga/ 1.00 mm
  • Maximum forming length: 24 in/ 610 mm
  • Roll diameter: 2 in/ 50 mm
  • Minimum forming radius: 1 in/ 25 mm
  • Wiring grooves: 3/16, 1/4, 5/16 in/ 5, 6.5, 8 mm
  • Dimensions: 43 x 11 x 15 in
  • Weight: 188 lbs
