Description

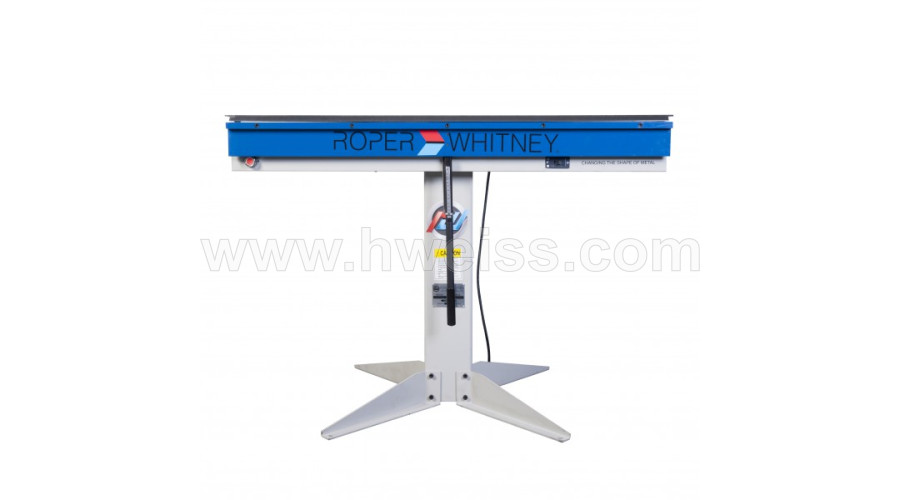

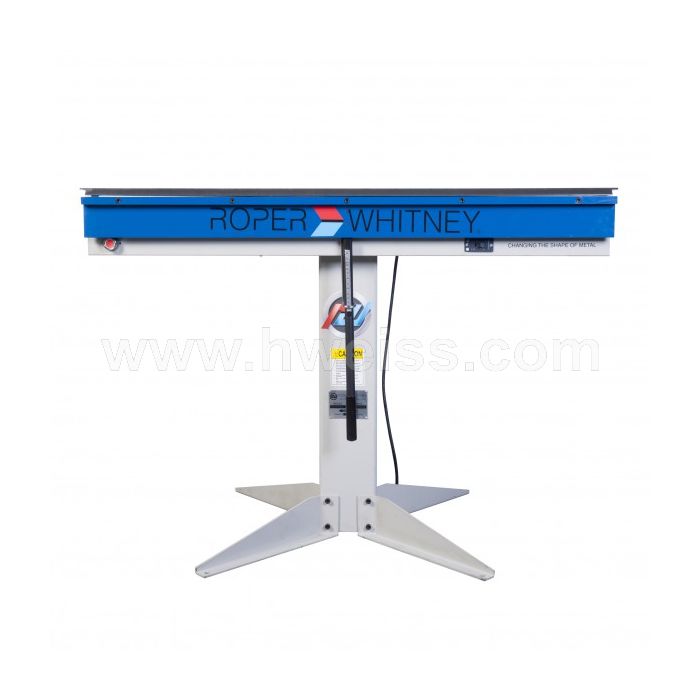

Magnabend offers performance characteristics no conventional bending brake can match. The unique electromagnetic design of the keeper clamping system allows you to form many complex shapes not possible before. Plus, Magnabend can handle all regular shapes in light ferrous and non-ferrous sheet metal (up to 4′ wide, 18 ga.) in a simpler, less time consuming and efficient manner. The rugged simple construction incorporating only one moving part assures low maintenance and versatility for all light duty forming requirements. A wide variety of complex shapes can be formed with Magnabend. These include rolled edges up 330¡, partial length bends, closed shapes, unlimited depth for boxes and heavier material bends (up to 10 ga.) in shorter widths.
specifications
Weight - 290 lbs
Dimensions - 55 x 12 x 12 in
Maximum bending capacity, mild steel - 18 ga/ 1,25 mm
Maximum bending length, typical bend radius 0.16 in/ 4 mm - 49 3/8 in/ 1250 mm
