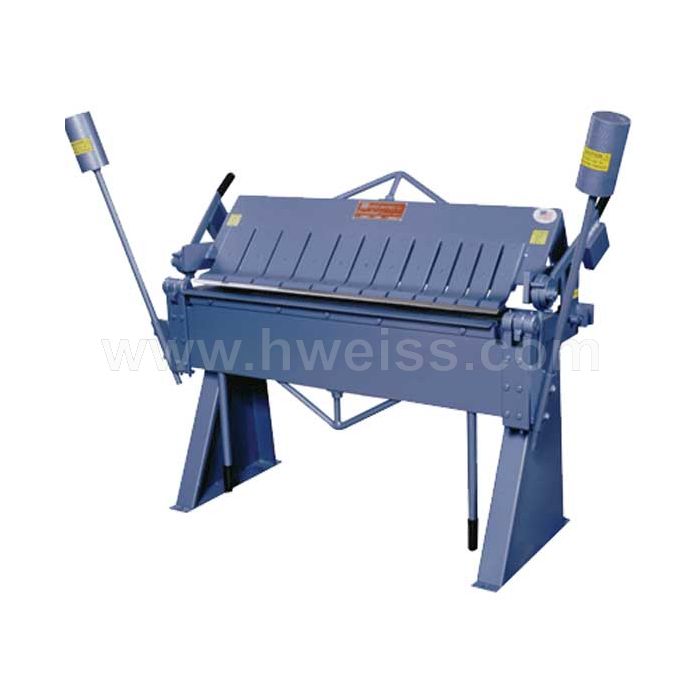

Roper Whitney Connecticut U-616-6 Box & Pan Hand Brake

Manufacturer: Roper Whitney

Condition: NEW

Location: F.O.B Factory

Description:

Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment. Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

Description

Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacities.

Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment.

Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

specifications

Weight - 1800 lbs

Dimensions - 91 x 54 x 35 in

Bending length - 72 in/ 1830 mm

Capacity mild steel, 1 inch flange, with bending bar and angle in place - 16 ga/ 1.60 mm

Capacity mild steel, 1 inch flange, with bending angle removed - 1/4 in/ 6.35 mm

Capacity mild steel, 1 inch flange, with bending bar and angle removed - 24 ga/ 0.61 mm

Minimum reverse bend (bar and angle removed) - 1/4 in/ 6.35 mm

Maximum lift of beam - 1 5/8 in/ 41 mm

Finger widths - 3, 4 and 5 in/ 76, 101 and 127 mm

Maximum depth of box - 6 in/ 152 mm

Front to rear adjustment - 1 1/8 in/ 28.5 mm
