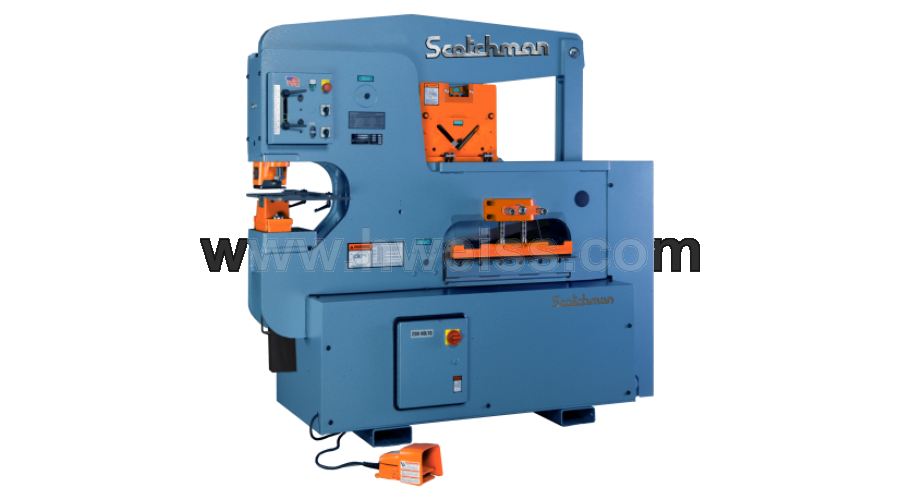

Scotchman 12012-24M Ironworker

Manufacturer: Scotchman Industries

Condition: NEW

Location: F.O.B Factory

Description:

Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty.

Description

Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty.

specifications

  • Rated on: 65,000 PSI Tensile and A 36 Mild Steel
  • Punching Capacity: 120 ton, 1-1/2" in 1"(108 mt, 38 mm in 25 mm)
  • Special Tooling: 4" Max. Dia. (100 Max. Dia. )
  • Throat Depth: 12"( 300 mm)
  • Flat Bar Shear: 24" Length, 1" x 12", 3/4" x 20", 1/2" x 24"(600 mm, 25 mm x 300 mm, 18 mm x 500 mm, 12 mm x 600 mm)
  • Angle Shear 90°: 6" x 6" x 1/2"(150 mm x 150 mm x 12 mm)
  • Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8", 4" x 4" x 1/2"(75 mm x 75 mm x 10 mm, 100 mm x 100 mm x 12 mm)
  • Brake 12": 83 ton(75 mt)
  • Brake 24": 65 ton(59 mt)
  • Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
  • Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2"(19 mm, 25 mm, 32 mm, 38 mm, 50 mm)
  • Rectangle Notcher: 2" x 2-1/2" x 3/8"(50 mm x 65 mm x 10 mm)
  • 90° V. Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
  • Channel Shear: 2" to 6" Adj. (50 mm to 150 mm Adj. )
  • Strut Shear: Samples Required
  • Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (40 spm)
  • Strokes per minute in light material: 3/4" Stroke [Punch Station] (13 spm)
  • Hydraulics: 2,600 psi (183 bar)
  • Motors Standard: 5 hp 3 ph, 230/460, 208/380/575(3.73 kW)
  • Motors Optional: 5 hp 1 ph, 230v( 3.73 kW)
  • Dimensions: W-28", L-77", H-73" (W-71 cm, L-196 cm, H-185 cm)
  • Shipping Weight: 5,204 lbs (2,360 kg)

features

  • Single Operator, 3 Stations
  • 120 Ton Punch Station (1-1/2" in 1")
  • Keyed Punch Ram for Safety
  • 12" Throat Depth
  • Punch Gauging Table with Fence and Scale
  • Die Holder Complete with 2" and 2-1/2" Die Inserts
  • #40 & #45 Punch Nuts with Wrench & Stripper
  • One Round Punch & Die: Max. Dia. 1-1/4"
  • Punch Jog Control
  • Adjustable Electric Stroke Control with Scale
  • Electric Remote Foot Pedal
  • Angle Shear Capacity 6" x 6" x 1/2" at 90°
  • 24" Flat Bar Shear with 4-Way Reversible Blade (1" x 12", 1/2" x 24")
  • Shear Table with Miter Fence
  • Tool Table Work Area
  • Slug Receptacle
  • Two-Stage Hydraulic Pump
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 volt /3 Phase Electrics (must specify voltage)
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Warranty three Years on Parts
  • Made in USA
