Description

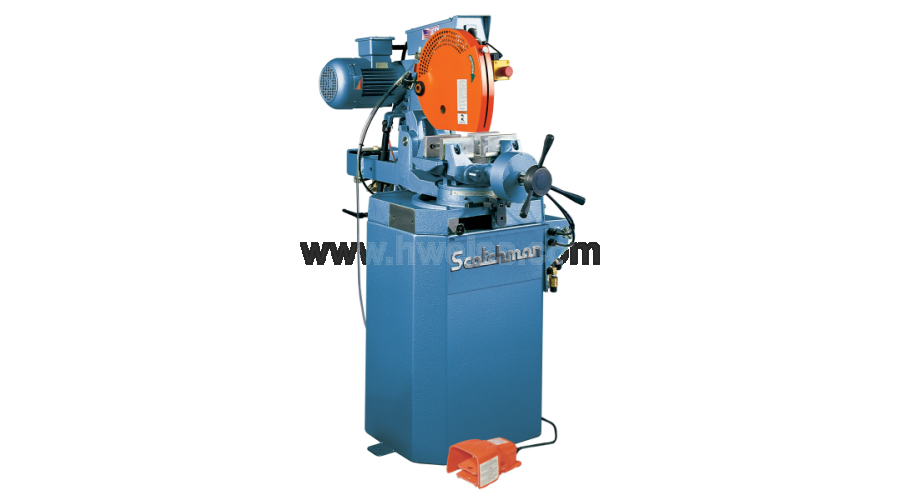

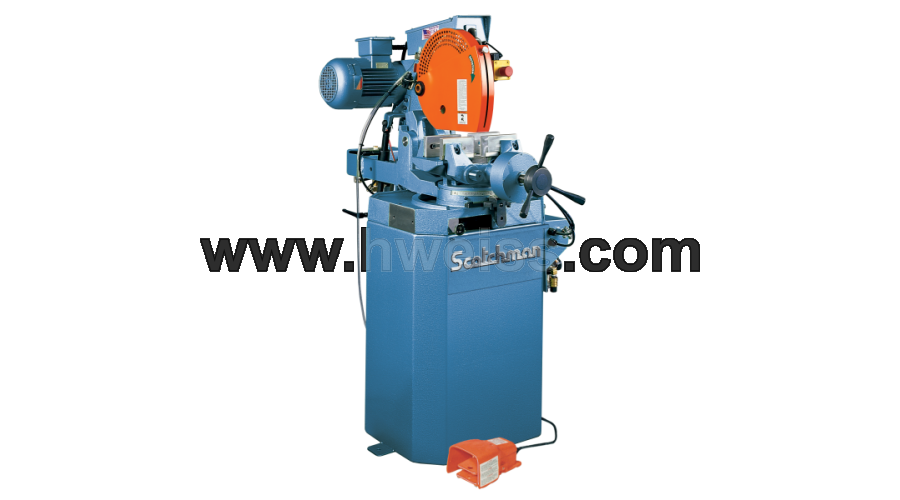

Scotchman CPO 350 NF PKPD Cold Saw
specifications
- Cutting Speeds: 3000 RPM
- Motor Rate: 5.0 HP
- Tubing: 90 Degree
- 90 Degree Round: 4-1/2" (114 mm)
- 90 Degree Square: 4-1/4" x 4-1/4" (108 x 108 mm)
- 90 Degree Rectangle: 5-1/2" x 4" (140 x 102 mm)
- Tubing: 45 Degree
- 45 Degree Round: 4-1/4" (108 mm)
- 45 Degree Square: 4" x 4" (102 x 102 mm)
- 45 Degree Rectangle: 4" x 4" (102 x 102 mm)
- Solid: 90 Degree
- 90 Degree Round: 3" (76 mm)
- 90 Degree Square: 3" x 3" (76 x 76 mm)
- Solid: 45 Degree
- 45 Degree Round: 2-1/2" (64 mm)
- 45 Degree Square: 2-1/2" x 2-1/2" (64 x 64 mm)
- Factory Wired: Specify 208 3 ph, 230 3 ph, 460 3 ph, 575 3 ph 60 hz
- Maximum Diameter Blade: 14"
- Arbor Bore: 1-9/16"
- Pin Spacing: 4/12/1964
- Width: 21-7/8"
- Depth: 43-1/2"
- Height not including handle: 56-1/4"
- Height from floor to vise: 37-7/16"
- Shipping Weight: 725 lbs
features
- Semi-Automatic Cycle
- Air-operated Clamp for Material Vise
- Pneumatic Power Down Feed with Electric Controls
- Separate Feed Control of both Feed Rate and Feed Pressure
- Power Double Self-Centering Vise Assures Burr-Free Cuts
- Emergency Stop Button
- Miter Capabilities 45 Degrees Left and 45 Degrees Right
- Miter Locking Device: Quick, Accurate Setting-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- 5 HP, 3000 RPM
- Positive Cog Belt Driven
- Chip Drawer
- One Gallon Coolant Tank with Mist Lubrication System
- One 13-1/2" Diameter (338 mm) Carbide-Tipped Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt/3 Phase Electrics (must specify voltage)
- Warranty three Years on Parts
- Made in USA
