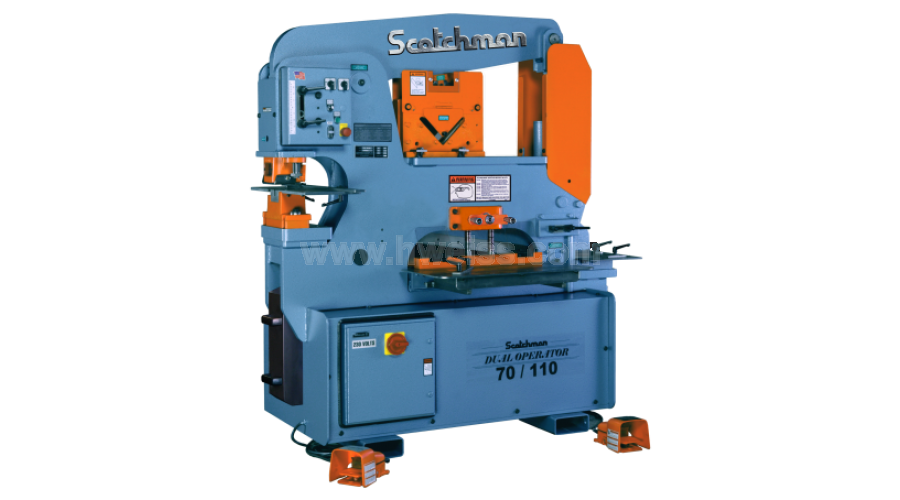

Scotchman DO 70/110-24M Ironworker

Manufacturer: Scotchman Industries

Condition: NEW

Location: F.O.B Factory

Description:

Scotchman offers several American-made, Dual Operator Ironworker Models from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Machines more versatility and flexibility than any other ironworker machine on the market.

The Scotchman DO 70/110-24M dual operator has four built-in features including a 70-ton punch (1-1/16” in 3/4"), the largest capacity angle shear for a 70-ton on the market (6” x 6” x 1/2"), a 24” plate shear (1” x 6” up to 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus our best in the business, 3-year parts warranty makes the Scotchman DO 70/110-24M hydraulic ironworker an industry leader.

Description

Scotchman offers several American-made, Dual Operator Ironworker Models from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Machines more versatility and flexibility than any other ironworker machine on the market.

The Scotchman DO 70/110-24M dual operator has four built-in features including a 70-ton punch (1-1/16” in 3/4"), the largest capacity angle shear for a 70-ton on the market (6” x 6” x 1/2"), a 24” plate shear (1” x 6” up to 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus our best in the business, 3-year parts warranty makes the Scotchman DO 70/110-24M hydraulic ironworker an industry leader.

specifications

  • Rated on: 65,000 PSI Tensile and A 36 Mild Steel
  • Punching Capacity: 70 ton, 1-1/8" in 3/4"(63 mt, 28 mm in 20 mm)
  • Special Tooling: 4" Max. Dia. (100 mm thru 5.5 mm)
  • Throat Depth: 9"(225 mm)
  • Flat Bar Shear (Sabre Blade - Std): 110 ton, 24" Length, 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x 24"(100 mt, 600 mm, 25 mm x 150 mm, 18 mm x 250 mm, 12 mm x 350 mm, 10 mm x 600 mm)
  • Angle Shear 90°: 6" x 6" x 1/2"(150 mm x 150 mm x 12 mm)
  • Angle Shear 45° (with Bar Shear): 3" x 3" x 3/8", 4" x 4" x 1/2"(75 mm x 75 mm x 10 mm, 100 mm x 100 mm x 12 mm)
  • Brake 12": 65 ton(59 mt)
  • Brake 24": 45 ton(40 mt)
  • Open End Brake: Max. 1/4" x 6" Flat or Angle Iron(6 mm x 150 mm)
  • Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2"(19 mm, 25 mm, 32 mm, 38 mm, 50 mm)
  • 90° V. Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
  • Rectangle Notcher : 3" x 5" x 3/8", 3" x 4" x 1/2"(75 x 125 x 10 mm, 75 x 100 x 12 mm)
  • V. Notch: 3" x 3" x 3/8" (75 x 75 x 10 mm )
  • Notching in Leg of Channel: 6" to 10"(150 mm to 250 mm)
  • Picket Tool: 1/2", 3/4", 1", 16 gauge(12 mm, 19 mm, 25 mm, 1.6 mm)
  • Offset Die Holder: Max. 40 ton(36 mt)
  • Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (47 spm)
  • Strokes Per Minute in Heavy Material: 3/4" Stroke [Punch Station] (16 spm)
  • Hydraulics: 3,000/3,000 psi (207/179 bar)
  • Motors Standard: 10 hp 3 ph, 230/460, 208/380/575(7.46 kW)
  • Motors Optional: 10 hp 1 ph, 230v(7.46 kW)
  • Dimensions: W-30", L-65", H-72-1/8"(W-76 cm, L-165 cm, H-183 cm)
  • Shipping Weight: 3,800 lbs(1,723 kg)

features

  • On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required
  • The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity
  • Dual Operator, 5 Stations
  • Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
  • 70-Ton Punch Station (1-1/8" in 3/4")
  • Keyed Punch Ram for Safety
  • 9" Throat Depth
  • Punch Gauging Table with Fence and Scale
  • Die Holder Complete with 2" Die Insert
  • Punch Nut with Wrench
  • Adjustable Swing-Away Stripper
  • One Round Punch & Die: Max. Dia. 1-1/4"
  • Punch Jog Control
  • Two Adjustable Electric Stroke Controls with Scale
  • Two Electric Remote Foot Pedals
  • Two 2-Stage Hydraulic Pumps
  • Two Valves
  • Angle Shear Capacity 6" x 6" x 1/2" at 90°
  • Rectangle Notcher 3" x 5" x 3/8" 3" x 4" x 1/2"
  • Notcher Table with Guides
  • 110 Ton, 24" Bar Shear with Sabre Blade (1" x 6", 3/8" x 24")
  • Shear Table with Miter Fence
  • Tool Table Work Area
  • Slug Receptacles
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 Volt/3 Phase Electrics (must specify voltage)
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Warranty three Years on Parts
  • Made in USA
