Description

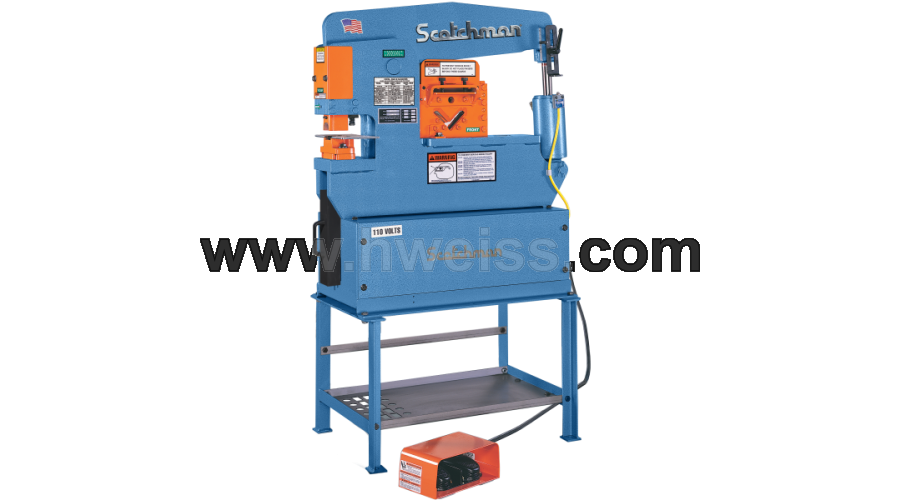

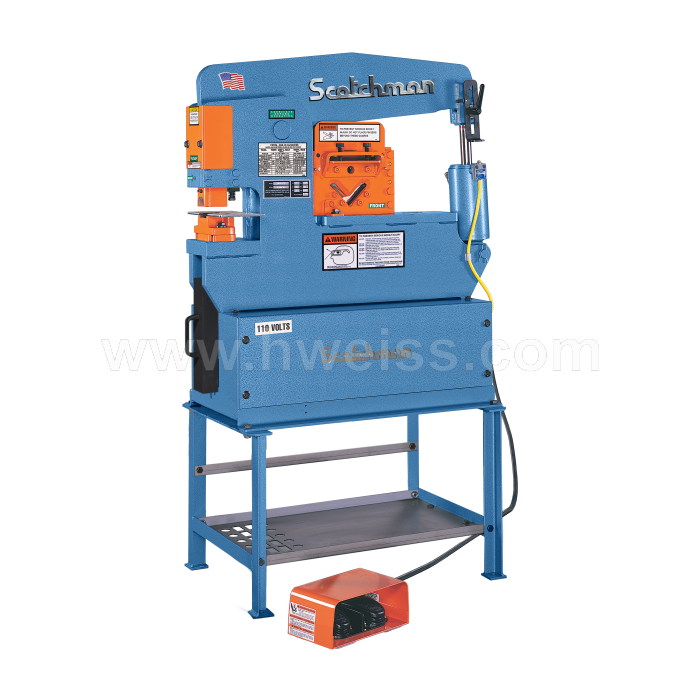

The Scotchman Porta Fab 45 hydraulic ironworker is the perfect choice for the small fabricator! This portable ironworker is designed for in-plant or on-the-job operation and uses 110-volt power for added convenience. Featuring a 45-ton punching capacity, the Porta-Fab 45 can punch 1-1/8" through 1/2" material and comes standard with a 3-in-1 combination tool consisting of a 3/8" x 6" flat bar shear, 3/4" rod shear, and a 3" x 3" x 5/16" angle shear. The Porta Fab 45 hydraulic ironworker also accepts many other optional Scotchman tooling components including press brakes, pipe notchers, rectangular notchers, and picket tool attachments. The American-made Porta Fab 45 utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman's industry leading 3-Year Warranty.
specifications
- Angle Shear Capacity: 3" x 3" x 5/16" at 90 degrees and 2" x 2" x 1/4" at 45 degrees
- Bar Shear Capacity: 3/8" x 6"
- Rod Shear Capacity: 3/4" Round
- Rated on: 65,000 PSI Tensile and A 36 Mild Steel
- Punching Capacity: 45 Ton, 1-1/8" in 1/2"(41 mt, 28 mm in 12 mm)
- Special Tooling: 2-1/4" Max. Dia. (57 mm Max. Dia. )
- Throat Depth: 4-1/4"(108 mm)
- Flat Bar Shear: 6" Length, 1/2" x 4", 3/8" x 6"(150 mm, 12 mm x 100 mm, 10 mm x 150 mm)
- Angle Shear 90°: 3" x 3" x 5/16" (75 mm x 75 mm x 8 mm)
- Angle Shear 45°: 2" x 2" x 1/4"(50 mm x 50 mm x 6 mm)
- Round Rod: 3/4" (20 mm)
- Brake 8": 25 Ton(23 mt)
- Brake 12": 20 Ton(18 mt)
- Open End Brake: Max. 1/4" x 3" Flat or Angle Iron(6 x 76 mm)
- Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"(20 mm, 25 mm, 32 mm, 38 mm, 50 mm
- Square Tube Shear: 1/2" to 1", 12 ga. (12 x 25 mm, 2.75 mm)
- Picket Tool: 1/2", 3/4", 1", 16 ga. (12 mm, 19 mm, 25 mm, 1.6 mm)
- Strokes per minute in light material: 1/4" Stroke [Punch Station](20 spm)
- Strokes per minute in heavy material: 3/4" Stroke [Punch Station] (6 spm)
- Hydraulics: 2500 psi (172 bar)
- Motor Standard: 2 hp 1 ph, 110v (1.49kW)
- Motor Optional: 2 hp 1 ph, 220v(1.49kW)
- Dimensions: W-17.63", L-35.75", H-38.75"(W-44.8 cm, L-90.8 cm, H-98.4 cm)
- Shipping Weight: 724 lbs(328 kg)
features
- Single Operator, 4 Stations
- 45-ton Punch Station (1-1/8" in 1/2")
- Keyed Punch Ram for Safety
- 4-1/4" Throat Depth
- 2" Die Holder
- Punch Nut with Wrench and Stripper
- One Round Punch & Die: Max. Diameter 1"
- Adjustable Electric Stroke Control with Scale
- Electric Remote Foot Pedal
- Three-in-One Combination Tool
- Tool Table Work Area
- Slug Receptacles
- Machine Stand with Punch & Die &Tooling Storage Rack
- 110 volt / 1-ph Electrics
- All Guards Necessary to Comply with ANSI B 11-5 Standards
- Warranty Three Years on Parts
- Made in the USA
