Description

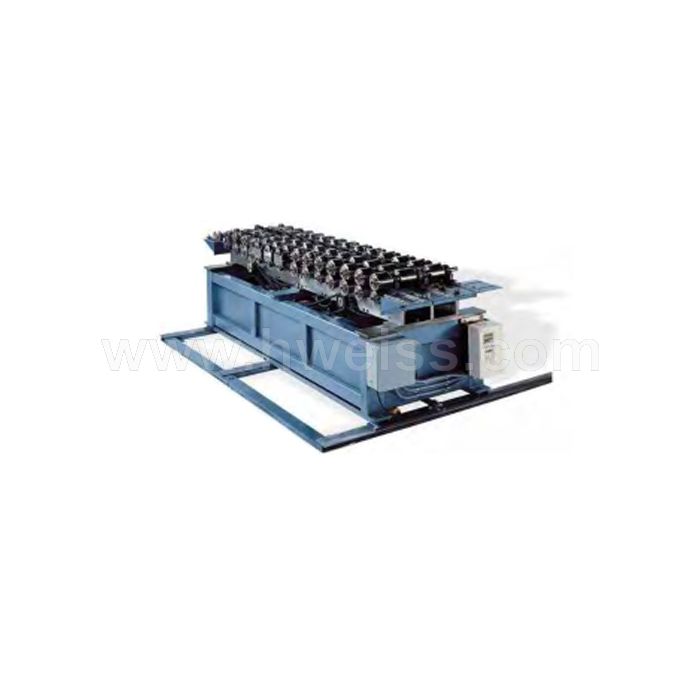

Rollforming your own sealable flanges on transverse duct ends during the manufacturing process has never been easier. The TDC flange, formed on the machine’s left-hand auxiliary, has unique, snap-on corners that eliminate spot welding. Optional rolls are also available for Z-Bar and TDC Clip.
specifications
- Capacity: 18-24 gauge for TDC 22 gauge for optional Clip Rolls
- Depth Of Pocket/Size: 1 7/8" for TDC 2 1/8" for Clip
- Others: Extended shafts for mounting auxiliary rolls.
- Speed: 50 feet per minute
- Motor/Voltage: 7.5 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 1,800 RPM
- Dimensions: Length - 144", Width - 33", Height - 48" ,Passline - 33"
- Weight: 4,400 lbs
