Description

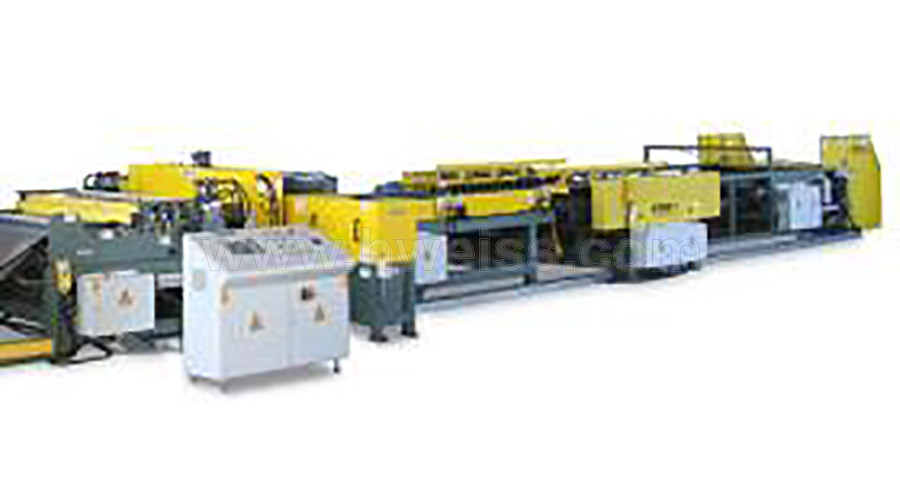

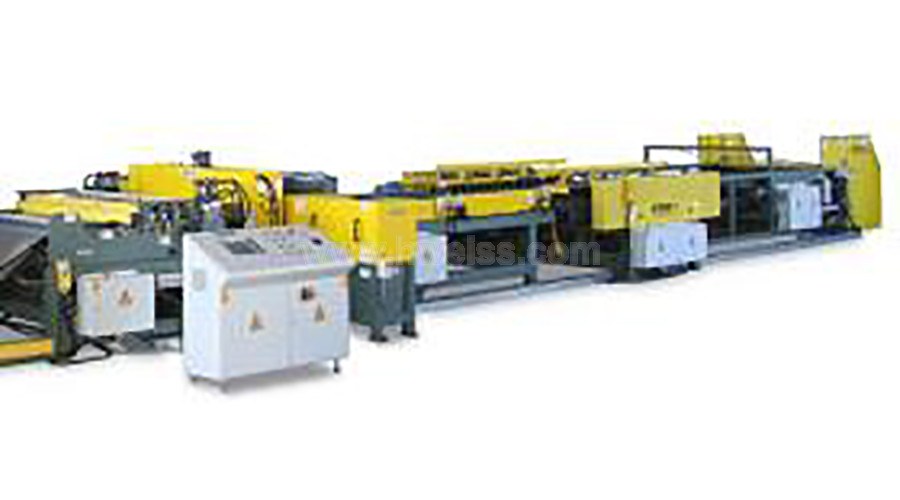

From start to finish the NEW Engel ValuePlus Coiline has been completely re-engineered to effortlessly deliver the power and precision that today’s HVAC companies demand Innovative ideas are all over this affordable workhorse —ideas that will save you time and money
specifications
- Peak Speed: 75 FPM
- Accuracy: +/- .020
- Handles: 4 & 5 foot coils
- Maximum part size: 120"
- Minimum part size: 17.75"
- Minimum Wrap Duct produced: 6" x 6"
- Minimum leg produced on “L” duct: 2"
features
- In line footprint fits well in many factory layouts – saving valuable space
- One man operation. Run in automatic or on demand using a convenient foot switch
- 12,000 lb or 20,000 lb belt drive or hydraulic drive Uncoilers available
- From 2 to 10 stations available
- Multi-Grid Feed systems available for easy loading
- Quick coil changeover. Extra Coil Drum Assemblies available for fast changeover of even more coil inventory
- Straighten, Bead, Notch and Shear (all standard) and Cleat Edge Former or Tie Rod Punching (both optional) all on one compact frame
- Patent Pending positioning and retention conveyor assures good seam profile
- Notching dies include clearance holes for use with EZ Connector system
- Rollformer comes standard with 1/2? Pittsburgh and Snaplock rolls
- TDC or TDF Rollformer available
- Lin-O-Matic/ Pinspotter available
- Wrap Brake produces 4 sided, “L”, “U” and full wrap duct
- No scrap between jobs run from the same coil
- Accepts downloaded jobs from many popular software applications
- User friendly touch screen control
- Low maintenance
- 26 ga – 18 ga Straighten, Bead, Notch, Shear, Bend, TDC/TDF, Pittsburgh
- 26 ga – 20 ga Cleat Edge Former, Snap Lock, Button Punch
