Description

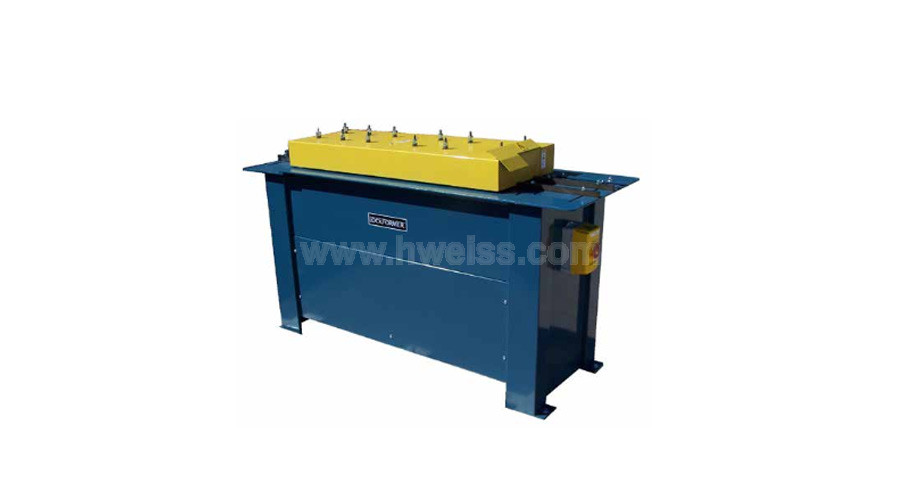

When the job calls for heavy-duty “giants,” this machine tool is it. For a multitude of HVAC rollforming shapes and profiles, look no further than the Super 11 Cleatformer. Pittsburgh Lock, Acme/Double Seam, Combination 3-1, Hemming, Boot Clip and reinforced “S” and drive cleats are just some of the many rollset tooling options you can add to this Super machine.
Every 11-station Cleatformer incorporates Lockformer’s precision built head-plates and offers extended shafts on both sides of the machine can accommodate many other sheet-edge operations, including the 20 gauge Pittsburgh Lock and the Button Punch Snap Lock. Famous Lockformer quality construction with an industrial motor and gear box; high precision bearings; heavy duty three zone chassis; plate head construction; hardened and ground roll shafts all protected with a cabinet finished with Lockformer’s top-quality primer and paint finish.
specifications
- Capacity: 22–26 gauge for “S” cleat operation
- Depth Of Pocket/Size: Standing "S" cleat height 1/2" Standing "S" cleat width 1 - 1/6"
- Others: V-belt
- Speed: 100 feet per minute
- Motor/Voltage: 5 H. P. , 230/460 volts, 60 cycle, 3 phase, 1,800 RPM. Manual switch with across-the-line starte
- Dimensions: Length - 67", Width - 24", Height - 40", Passline - 32 - 1/2"
- Weight: 950 lbs
