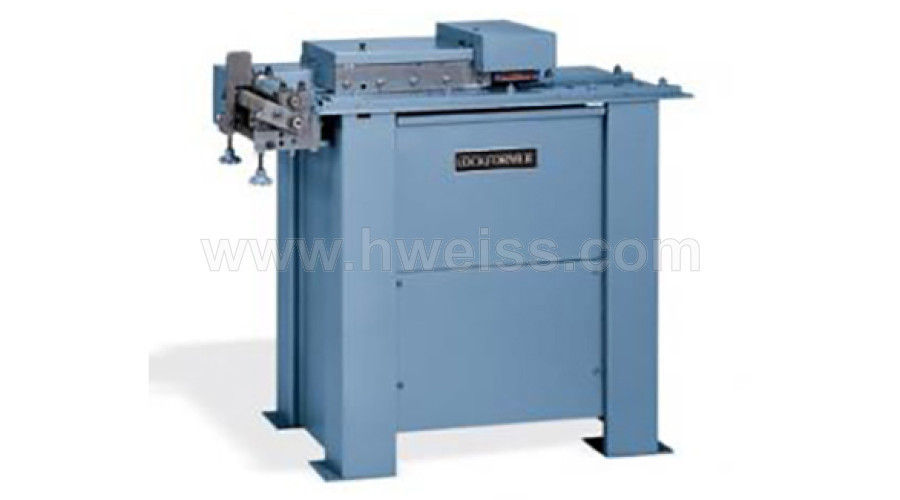

Lockformer Spin Collar Maker

Manufacturer: Lockformer

Condition: NEW

Location: F.O.B Factory

Description:

Make your own spin collars in minutes. Just cut galvanized stock (24 gauge & lighter) to width and length, set the diameter from 4" to 16", and push the blank against the automatic stop. A synchronized die notches the lead edge for easy spin-installation on the job site. The notched piece is then pushed past the stop, feeding the part into the roll former and finally into the automatic crimping and curling operations. Two models are available. Model 6 (2" to 6") and Model 12 (2" to 12").

×

Some of the products aren't available in stock all the time, we are willing to work with the manufacturers and obtain them for you. Please call us on 866-493-4771

Lockformer Spin Collar Maker
Description

Make your own spin collars in minutes. Just cut galvanized stock (24 gauge & lighter) to width and length, set the diameter from 4" to 16", and push the blank against the automatic stop. A synchronized die notches the lead edge for easy spin-installation on the job site. The notched piece is then pushed past the stop, feeding the part into the roll former and finally into the automatic crimping and curling operations. Two models are available. Model 6 (2" to 6") and Model 12 (2" to 12").

specifications

  • Capacity: 24-30 gauge
  • Motor/Voltage: 3/4 hp, 1725 rpm, 115 volt, 1 phase
  • Speed: 40 fpm
  • Dimensions: Length - 22 ½", Width - 42", Height - 37½"
  • Weight: 400 lbs

features

  • Curling Diameter - 4-16"

manual

CATALOG_Collarmaker_Spincollar.pdf
