Description

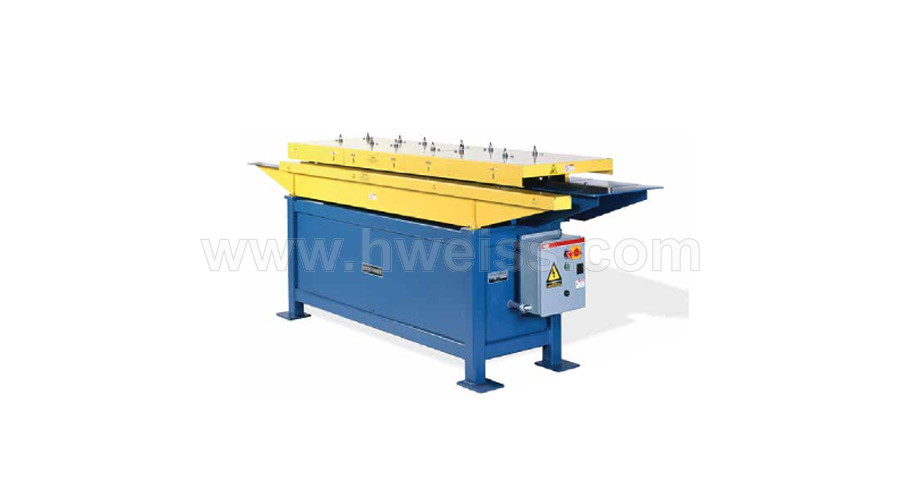

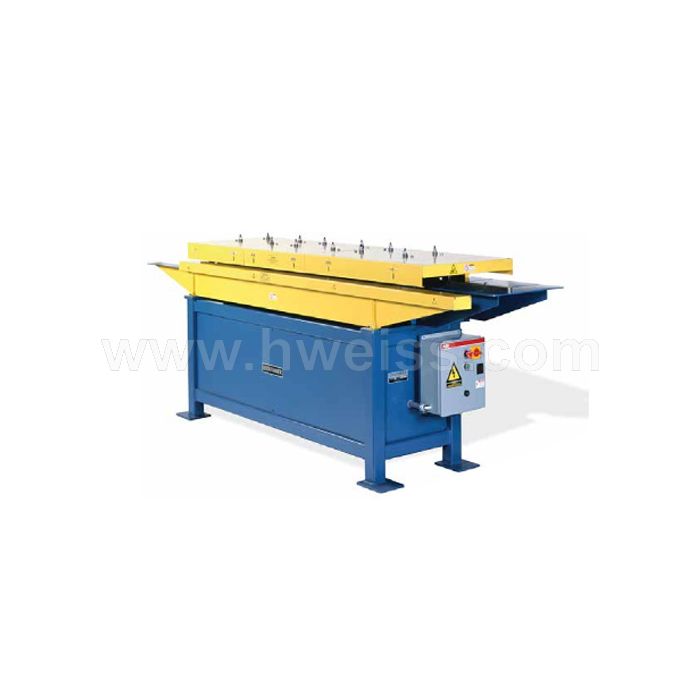

The TDC® V Rollformer has 12 forming stations and produces TDC®flanges at speeds of up to 50 feet per minute!This is the only transverse duct connector machine on the market certified to comply with SMACNA Duct Construction Standard (DCS) T-25a based on actual laboratory tests across the full range of water gauges. Famous Lockformer quality construction with an industrial motor and gear box; high precision bearings; heavy duty two zone chassis; plate head construction; hardened and ground roll shafts all protected with a cabinet finished with Lockformer’s top-quality primer and paint finish. Optional rolls are available for TDC Clip or Pittsburgh lock production. Ask about our TDC® Notching machine and Corner Cadet™ to speed up your productivity even more.
specifications
- Capacity: 18-24 gauge for TDC 22 gauge for optional Clip Rolls
- Depth Of Pocket/Size: 1 7/8" for TDC 2 1/8" for Clip
- Others: Extended shafts for mounting auxiliary rolls
- Speed: 60 feet per minute
- Motor/Voltage: 10 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 1,800 RPM
- Dimensions: Length - 137", Width - 38", Height - 48", Passline - 33"
- Weight: 2,800 lbs
